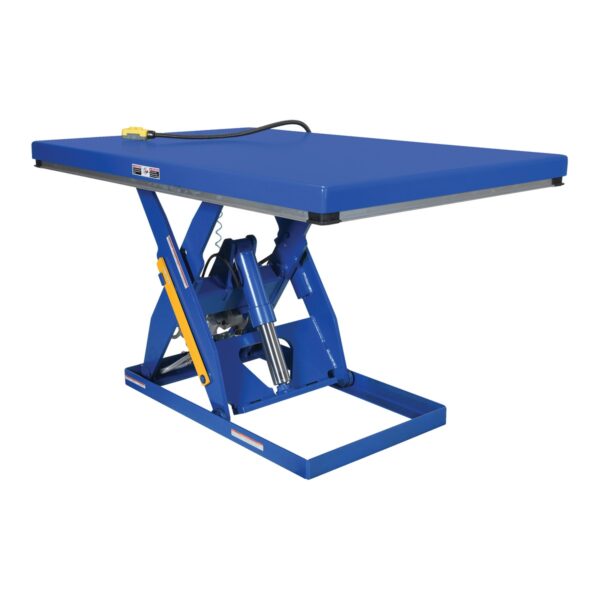

Vestil Air/Hydra Scissor Lift Table 3K 42.375 W x 72.375 L AHLT-4872-3-43
Features:
-
Air-powered hydraulic lift table for versatile indoor/outdoor use
-
Seamlessly integrates with factory air supply (80 PSI @ 80 CFM minimum)
-
Scissor lift table design with raised height of 43 inches
-
Hydraulic scissor table cart equipped with:
-
Pneumatic upper travel limit switch
-
Internal velocity fuse for added safety
-
Lifetime-lubricated sleeve bearings
-
Two-button hand pendant control
-
Safety toe guards for operator protection
-
-
Easy connection via 3/4" air supply line and 1/2" air inlet
-
No electrical power required – ideal for air-operated sites
Applications:
Perfect for warehouses, assembly lines, shipping facilities, and production floors. This rotary hydraulic lift table reduces worker strain and boosts productivity by elevating materials to the correct height with minimal effort.
Product Specifications:
| Specification | Details |
|---|---|
| Model | AHLT-4872-3-43 |
| Brand | Vestil |
| Capacity | 3,000 lbs |
| Raised Height | 43 in |
| Air Pressure Required | 80 PSI @ 80 CFM |
| Air Supply Inlet | 1/2 in |
| Supply Hose Size | 3/4 in |
| Weight | 937 lbs |
| Dimensions | 52 × 74 × 17 in |
| Sizes Available | 24.375"W x 48.375"L 30.375"W x 60.375"L 40.375"W x 48.375"L 42.375"W x 72.375"L 48.375"W x 48.375"L |
The Vestil AHLT-4872-3-43 Rotary Air/Hydraulic Scissor Lift Table is engineered for high-performance material handling in demanding environments. This hydraulic lift table combines factory air and hydraulic power to deliver smooth, controlled lifting for heavy-duty industrial use. With a uniform capacity of 3,000 lbs, it provides a reliable and ergonomic solution for positioning loads at optimal working heights.
