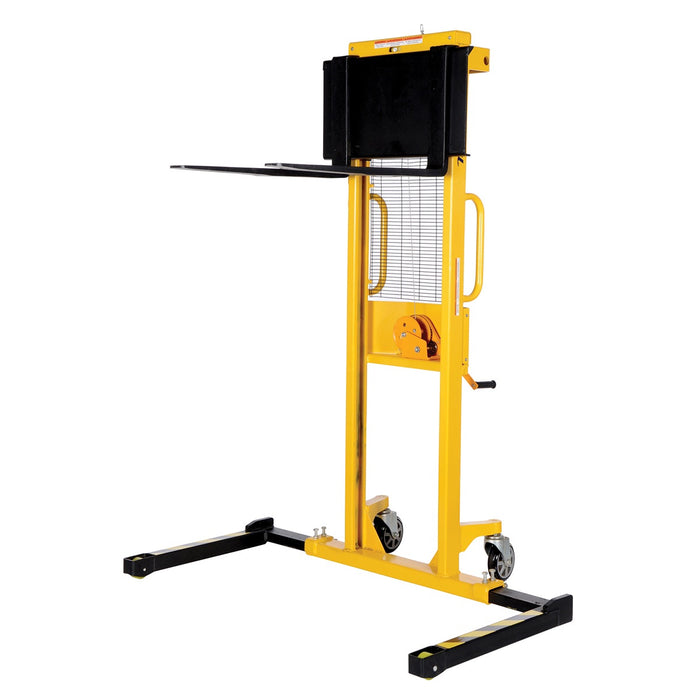

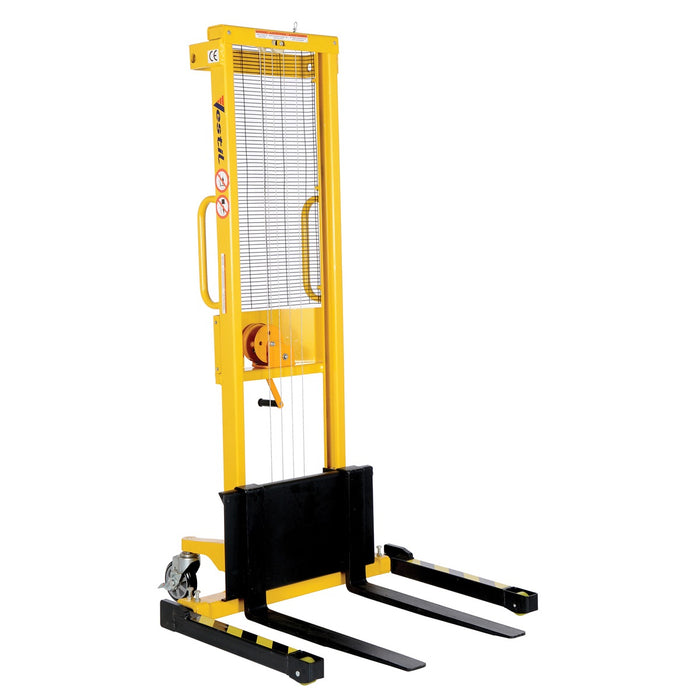

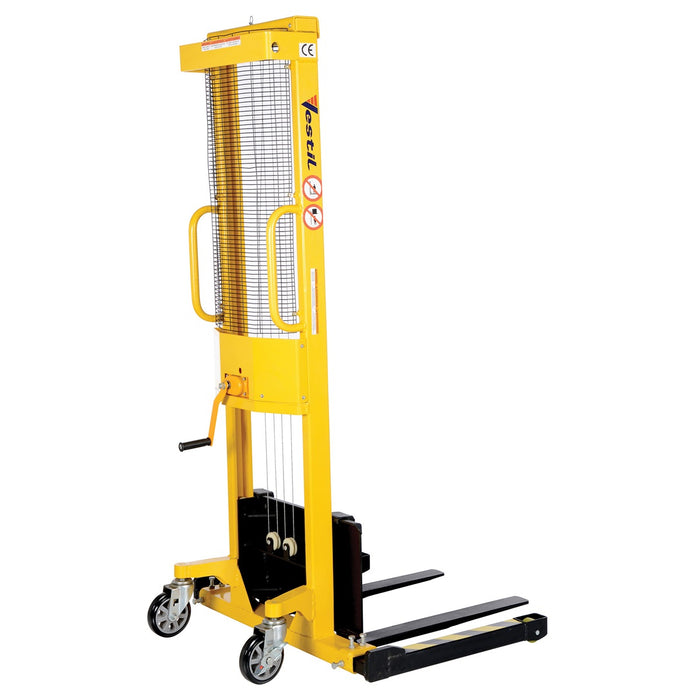

Vestil Manual Hand Winch ADJ Stacker 770 LB Cap VWS-770-AA
Features:
-
Maintenance-free manual stacker with steel cable hand winch operation
-
Supports up to 770 lb. lifting capacity
-
Adjustable forks (6-1/4" to 26-3/4") and legs (35-1/2" to 47-1/4")
-
Smooth rolling on two swivel and two rigid casters with brakes
-
Ideal for use as a power stacker lift in tight warehouse spaces
-
Compatible with Vestil, CWS-60, HYS-2K, HYS-96, and other manual pallet stackers
Specifications:
| Specification | Value |
|---|---|
| Model | VWS-770-AA |
| Uniform Capacity (lb.) | 770 |
| Operation | Hand Winch |
| Lift per Handle Revolution (in.) | 3/4 |
| Raised Height (in.) | 59 |
| Lowered Height (in.) | 1-9/16 |
| Fork Length (in.) | 30 |
| Individual Fork Width (in.) | 3-1/8 |
| Fork Adjustment (O.D) | 6-1/4 to 26-3/4 |
| Straddle Leg Adjustment (I.D.) | 35-1/2 to 47-1/4 |
| Rear Caster Diameter (in.) | 6 |
| Front Wheel Diameter (in.) | 4 |
| Dimensions (L × W × H) | 48 × 44 × 82 in |
| Weight | 361 lbs |
Tackle your toughest material handling jobs with the Vestil VWS-770-AA Manual Hand Winch Stacker. This reliable hand winch stacker is engineered for workstation, warehouse, and pallet stacking applications where safety, precision, and ease of use matter most. Designed with a heavy-duty mast and robust steel cable lift mechanism, it ensures controlled lifting with every handle rotation.
The ergonomic full-height push handle offers excellent visibility and maneuverability, while the adjustable forks and straddle legs provide versatility for handling various pallet sizes. This unit operates smoothly with a manual hand winch, making it a cost-effective alternative to electric-powered models like the HYS-60 or HYS-120-LH.
Whether you need a dependable hydraulic hand pump stacker, a manual stacker, or an alternative to an electric pallet stacker, this model delivers reliable lifting for up to 770 lbs. Ideal for facilities requiring a pallet stacker forklift, pallet lift, or hand pallet truck without electrical dependence.
