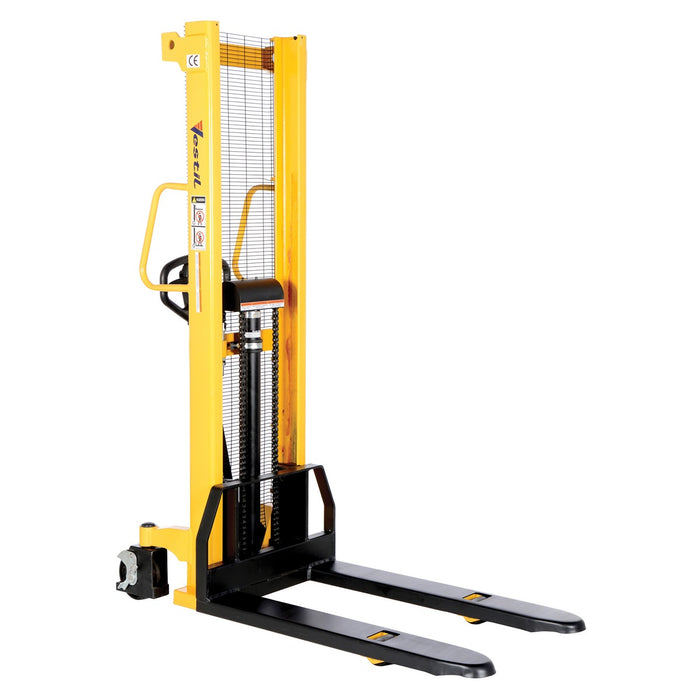

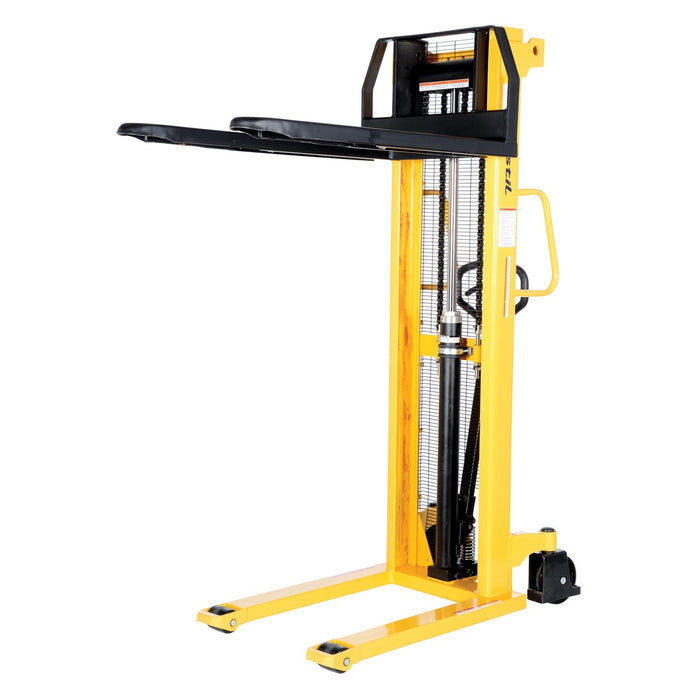

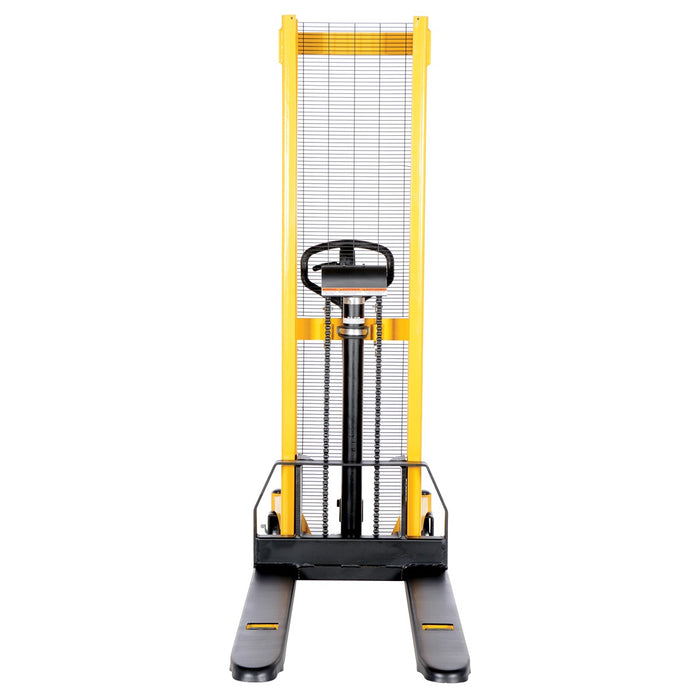

Vestil Manual Stacker Fixed Forks/Legs 2K VHPS-2000-FF
Features
-
2000 lb load capacity for heavy-duty pallet handling
-
Manual hydraulic hand pump operation with precise control
-
Full-height ergonomic push handle for better maneuvering
-
Two swivel casters with brakes and two rigid wheels for stable movement
-
Adjustable forks (6"–24") and straddle legs (34"–50") for flexible pallet access
-
Compact design fits through standard doors for use in tight environments
-
Compatible with Vestil VHPS-2000-FF, HYS-2K, and similar manual stackers
Specifications
| Feature | Details |
|---|---|
| Uniform Capacity | 2000 lbs |
| Service Range | 3-3/4" to 63" |
| Horizontal Load Center | 24" |
| Straddle Leg Min/Max (I.D.) | 34" – 50" |
| Fork Adjustment Min/Max (O.D.) | 6" – 24" |
| Individual Fork Width | 4" |
| Fork Length | 42-1/8" |
| Lift per Pump Stroke | 3/4" |
| Rear Casters | (2) 7" x 2" Swivel with Brake |
| Front Casters | (2) 4" x 2-29/32" Rigid |
| Weight | 570 lbs |
| Dimensions (L x W x H) | 64" x 40" x 87" |
The Manual Stacker is engineered to meet the most demanding warehouse and industrial needs. With a uniform load capacity of 2,000 lbs, it is ideal for workstations, pallet stacking, and material handling in tight spaces. This Hydraulic Hand Pump Stacker ensures smooth, controlled lifting and compact maneuverability—designed to fit through standard doorways for efficient indoor operation.
Whether you're comparing against Vestil VHPS-2000-FF, HYS-120-LH, HYS-60, or other manual stackers, this unit offers reliable performance and durability. It includes a full-height ergonomic push handle for excellent steering visibility and easy control. The forks are lifted using a manual hydraulic hand pump and lowered via a convenient lever on the handle. Adjustable straddle legs and forks accommodate different pallet sizes.
Ideal for operations that don't require DC powered stackers or electric lift trucks, this stacker provides a practical and cost-effective solution for warehouses and distribution centers.
