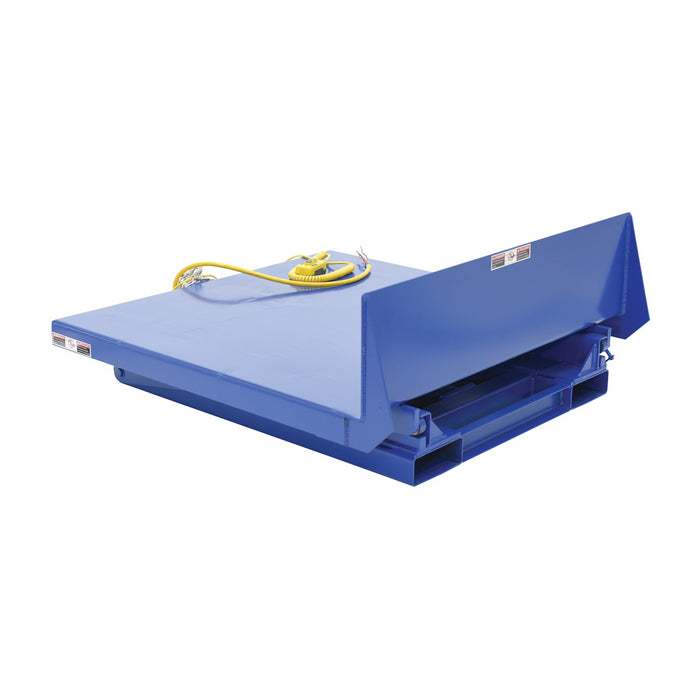

Vestil Sliding Tilt Table 4K LB Capacity 48″X47.75″ EHTT-L
Features:
-
Dual-function: Hinge and Sliding Tilt Table
-
3-sided access with gusset-free lip design
-
Hydraulic-powered tilt with modulated flow and counterbalanced valves
-
24V hand pendant control
-
Optimized for use as a lift tilt table and industrial tilt table
Specifications:
| Specification | Value |
|---|---|
| Model | Vestil EHTT-L |
| Capacity | 4,000 lbs |
| Platform Width | 48 in |
| Platform Length | 47.75 in |
| Level Height | 8 in |
| Maximum Tilt Degree | 45° |
| Lip Height | 12 in |
| Motor Horsepower | 2 HP |
| Voltage/Phase | 460V / 3-Phase AC |
| Fork Pocket Width/Height | 7.5 in / 2.5 in |
| Fork Pocket Center | 28 in |
| Control | 24V Handheld Pendant |
| Weight | 812 lbs |
| Overall Dimensions (LxWxH) | 48 × 48 × 10 in |
The Vestil EHTT-L Hinge and Sliding Tilt Table is designed to streamline material handling in industrial environments. Built with the rugged dependability of the master line, it offers an extra platform height and dual-functionality as a hinge tilt table and sliding tilt table.
This industrial tilt table allows loading from three sides thanks to a gusset-free lip and offers a full 45° tilt via a hydraulic tilt system equipped with a pressure-plated pump, modulated flow control, and counterbalanced valves for maximum efficiency and operator safety.
Its patented sliding link-tilt mechanism maintains the center of gravity near the frame for enhanced stability. Ideal for applications requiring a lift tilt table or tilting table, the Vestil EHTT delivers superior ergonomic performance and reliability.
