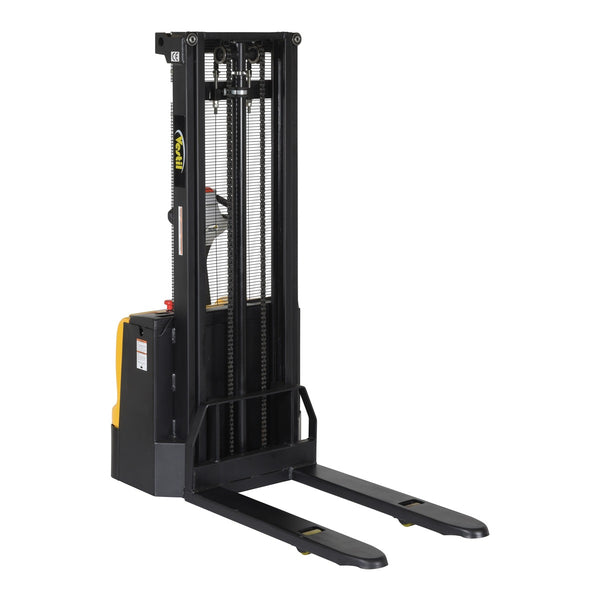

Vestil Stacker Dbl Mast 118″ Fixed 2.2K S-118-FF-DM
Features
-
Fully powered drive and lift for efficient, ergonomic material handling
-
Handles up to 2200 lbs at lower heights; 1500 lbs at maximum raised height
-
Electric pallet jack alternative with better vertical stacking capability
-
Built-in charger and battery level gauge
-
Operates up to 8 hours on intermittent use
-
Ergonomic handle with speed and lift/lower control
-
Poly-on-steel wheels for reliable indoor movement
-
Compatible with skids only – not for use with bottom-boarded pallets
Specifications
| Attribute | Value |
|---|---|
| Uniform Capacity (0″–62″) | 2200 lbs |
| Uniform Capacity (62″–118″) | 1500 lbs |
| Fork Width | 26-3/4 in |
| Fork Length | 42 in |
| Lowered Height | 3-3/8 in |
| Raised Height | 118 in |
| Battery | (2) 12V Lead-Acid Deep Cycle |
| Drive Motor | DC 24V |
| Lift Motor | DC 24V |
| Operation at Full Charge | 3–4 hours |
| Operation (Intermittent Use) | Up to 8 hours |
| Wheel Material | Poly-On-Steel |
| Style | Fixed Forks Over Fixed Support Legs |
| Weight | 1330 lbs |
| Dimensions | 85 × 36 × 87 in |
The Vestil S-118-FF-DM Double Mast Fully Powered Electric Stacker is a heavy-duty solution designed for efficient material handling in warehouses, factories, and industrial settings. Equipped with a powered drive and powered lift, this electric stacker minimizes manual labor and maximizes productivity.
Featuring a high-torque DC 24V drive and lift motor, the unit supports seamless transport and lifting of palletized loads. The ergonomic throttle handle allows for infinite speed adjustment in both forward and reverse directions, while intuitive lift/lower controls and an emergency reverse safety function ensure operator control and safety.
This powered stacker is ideal for transporting both small and large palletized loads. The electromagnetic disc brake system includes a built-in dead-man switch for automatic stop when the operator releases the handle. The stacker operates with (2) 12V lead-acid deep-cycle batteries, providing up to 4 hours of full-use operation or 8 hours intermittently on a single charge. A built-in battery charger and battery level indicator come standard.
Poly-on-steel steer and load wheels offer durability and smooth maneuverability. With fixed forks over fixed support legs, this stacker is compatible with open-bottom skids (not pallets with bottom boards).
