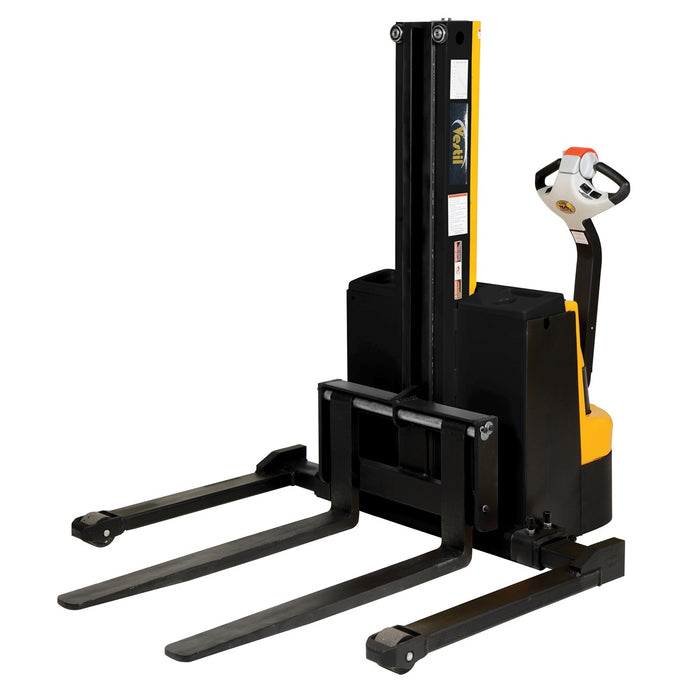

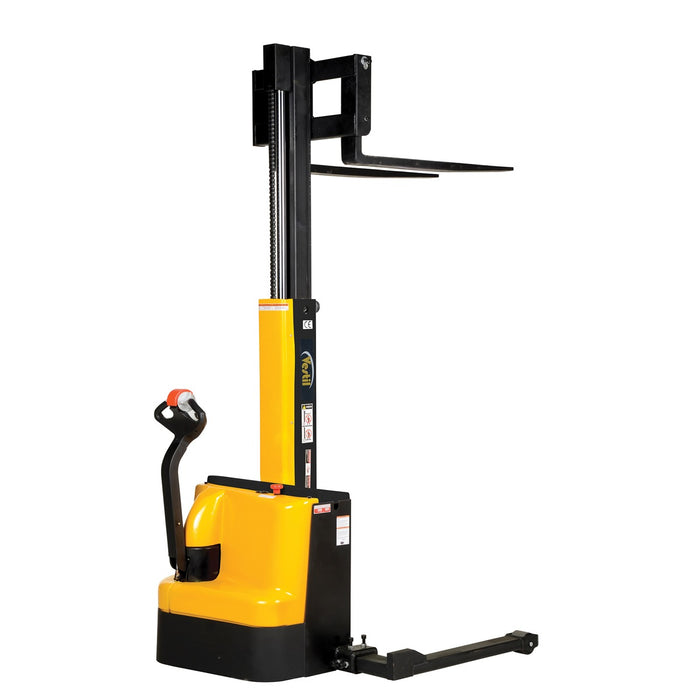

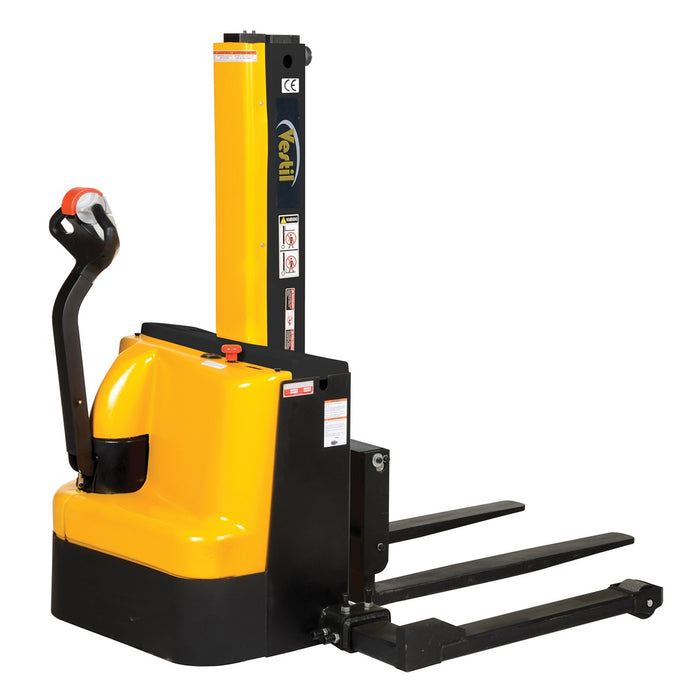

Vestil Stacker Narrow Mast PWR Drive AA 90″ SNM-90-AA
Features:
-
Narrow Mast Design – Ideal for confined spaces in shipping, warehouse, and manufacturing environments
-
Powered Drive & Powered Lift – Fully motorized for smoother material handling operations
-
Adjustable Forks & Legs – Compatible with both pallets and skids
-
Smooth Poly-On-Steel Wheels – For excellent maneuverability on warehouse floors
-
Throttle-Style Lifting Control – Precise lift/lower and speed adjustments
-
Includes Battery Charger & Gauge – Keeps the stacker powered and ready to work
-
Efficient Operation – Runs 3–4 hours continuously or up to 8 hours on intermittent use
-
Compatible with Electric Pallet Jack alternatives for lighter-duty applications
Specifications
| Specification | Value |
|---|---|
| Uniform Capacity | 2,500 lb |
| Uniform Capacity (62″ to 90″ Raised Height) | 2,000 lb |
| Fork Width | 8.3" to 26.75" |
| Fork Length | 42" |
| Lowered Fork Height | 2.125" |
| Maximum Raised Height | 90" |
| Power Source | (2) DC / 12V Batteries |
| Drive Motor | 1.0 KW |
| Lift Motor | 2.0 KW |
| Wheel Material | Poly-on-Steel |
| Operation at Full Charge | 3–4 Hours |
| Operation with Intermittent Use | 8 Hours |
| Style | Adjustable Forks / Legs (Pallets & Skids) |
| Dimensions (L × W × H) | 75″ × 60″ × 72″ |
| Weight | 1,243 lb |
The Vestil SNM-90-AA Narrow Mast Semi-Electric Stacker is designed for precision handling in tight warehouse aisles and manufacturing facilities. This stacker with powered drive and powered lift offers an efficient, cost-effective solution for lifting, positioning, and transporting pallets and skids. Ideal for businesses that need a powered lift stacker with maneuverability and reliability, the SNM-90-AA enhances productivity with dual motor operation and a compact mast design.
Built with poly-on-steel wheels and a 1.0 KW drive motor, this power stacker smoothly navigates confined workspaces. The 2.0 KW lift motor ensures safe and consistent elevation with minimal operator effort. Adjustable forks and support legs make this unit versatile for various pallet sizes, and the built-in battery charger keeps downtime to a minimum.
