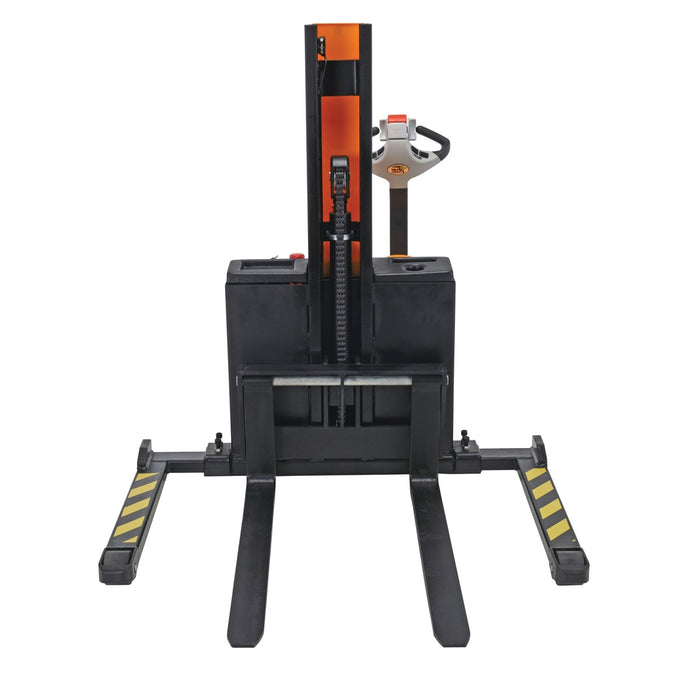

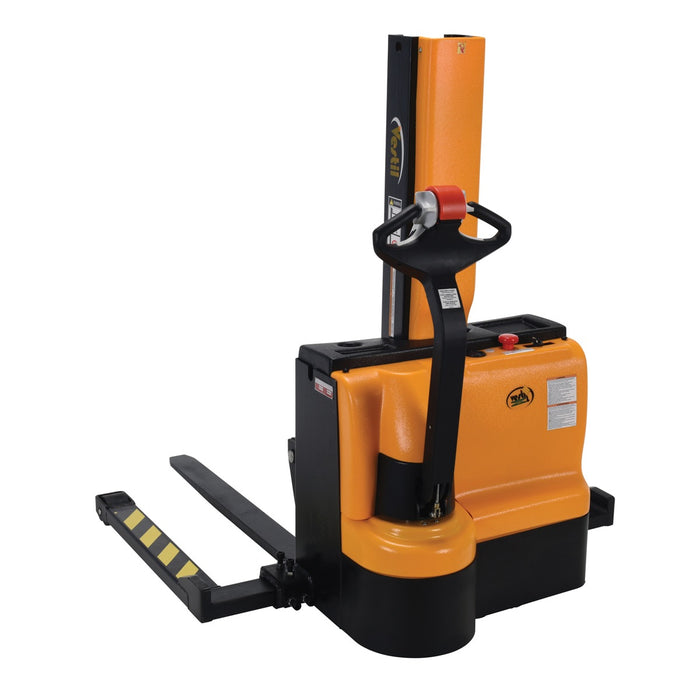

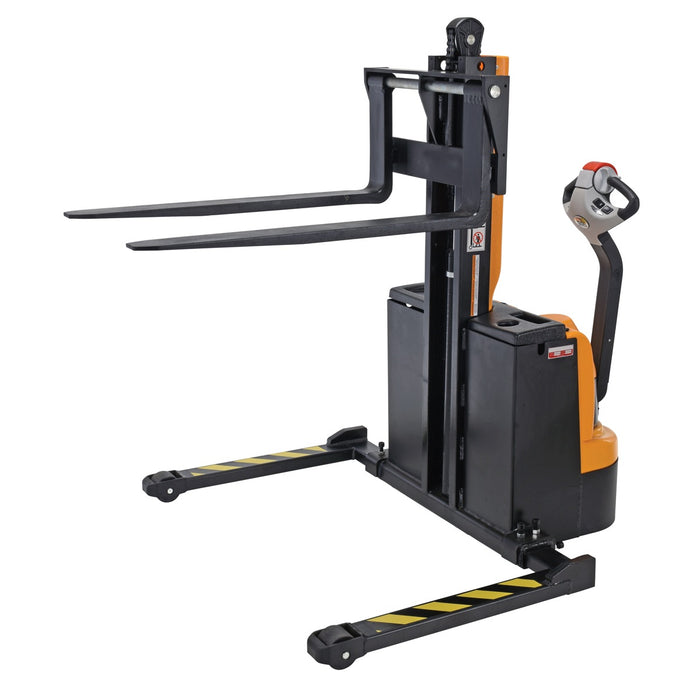

Vestil Stacker Pwr Lift/Dr ADJ Frk 43In 3000 LB SNM3-43-AA
Features
-
Ideal for tight spaces in shipping, warehouses, and manufacturing
-
Fully integrated powered drive and powered lift for ease of operation
-
High-capacity design: lifts up to 3,000 lbs
-
Ergonomic throttle handle with infinite forward/reverse speed adjustments
-
Adjustable forks and leg supports for versatile pallet/skid compatibility
-
Smooth maneuvering with poly-on-steel steering/load wheels
-
Includes battery charger, level gauge, and emergency brake system
-
Compatible with a wide range of pallets—works as an electric pallet jack alternative
-
Fits perfectly under narrow racking due to its compact mast design
Specifications
| Specification | Details |
|---|---|
| Uniform Capacity | 3,000 lbs |
| Fork Width | 8.3" to 26.75" |
| Fork Length | 42" |
| Lowered Height | 2.125" |
| Raised Height | 43" |
| Power Source | (2) 12V DC Batteries |
| Lift Motor | 2.0 KW |
| Drive Motor | 1.0 KW |
| Operation at Full Charge | 3–4 hours |
| Intermittent Use | Up to 8 hours |
| Steer/Load Wheels Material | Poly-On-Steel |
| Front Casters | (2) – 4"D x 3"W |
| Rear Caster | (1) – 6"D x 2"W |
| Handle Height | Adjustable to 48" |
| Handle Diameter | 1-5/16" |
| Style | Adjustable Forks / Legs |
| Product Weight | 1,121 lbs |
| Dimensions (L × W × H) | 74" × 60" × 67" |
Vestil SNM3-43-AA Narrow Mast Semi-Electric Stacker with Powered Drive and Lift is engineered for high-performance pallet handling in tight warehouse and manufacturing environments. This powered stacker provides an efficient solution for lifting, loading, and transporting materials where space is limited.
With both a powered drive and a powered lift, the SNM3-43-AA stacker minimizes manual labor and boosts operator productivity. The intuitive throttle handle offers precise speed control, while the poly-on-steel wheels and multiple casters enhance stability and smooth maneuverability across industrial floors.
Whether you're using pallets or skids, the adjustable forks and support legs adapt to various load types, making this semi-electric stacker a flexible tool for material handling.
