Vestil Fork Over DC Stacker 22 X 45 PMC-S-FF-137
Vestil PMC-S-FF-137 Self-Propelled Electric Stacker – 137.5” Lift Height
Features
-
Dual-purpose stacker: Combines lifting and transporting for increased efficiency
-
Self-propelled design: Smooth drive for faster task completion
-
Electric powered lift: Handles loads up to 2,500 lbs (up to 62"), 1,500 lbs (above 63")
-
Fork dimensions: 22"W x 45"L, 6" individual fork width
-
Service range: 3-1/2" lowered to 137-1/2" raised height
-
User-friendly handle: 52-1/4" height with 1.3" diameter for better control
-
High-visibility finish: Blue color for enhanced workplace safety
-
Ideal for skids: Fixed forks over fixed support legs
-
Electric lift truck alternative: A compact and cost-effective solution
Specifications
| Specification | Value |
|---|---|
| Model | Vestil PMC-S-FF-137 |
| Capacity (0–62” lift) | 2,500 lbs |
| Capacity (63–137.5” lift) | 1,500 lbs |
| Lift Height Range | 3-1/2" to 137-1/2" |
| Fork Size (W x L) | 22" x 45" |
| Individual Fork Width | 6" |
| Handle Height / Diameter | 52-1/4" / 1.3" |
| Turning Radius | 56-1/4" |
| Drive Caster (Dia. x W) | 10" x 3", Rubber |
| Front Caster (Dia. x W) | 3-1/4" x 2-3/4", Rubber |
| Rear Caster (Dia. x W) | 6" x 1-1/2", Rubber |
| Power | (2) 12V Batteries |
| Style | Fixed Forks over Fixed Legs |
| Construction | Heavy-duty steel |
| Dimensions (L x W x H) | 85" x 36" x 94" |
| Weight | 1172 lbs |
Applications
Perfect for:
-
Warehousing and distribution centers
-
Skid lifting and pallet transport
-
Loading/unloading in manufacturing plants
-
Tight-aisle material handling
-
Environments needing an electric pallet jack or power stacker alternative

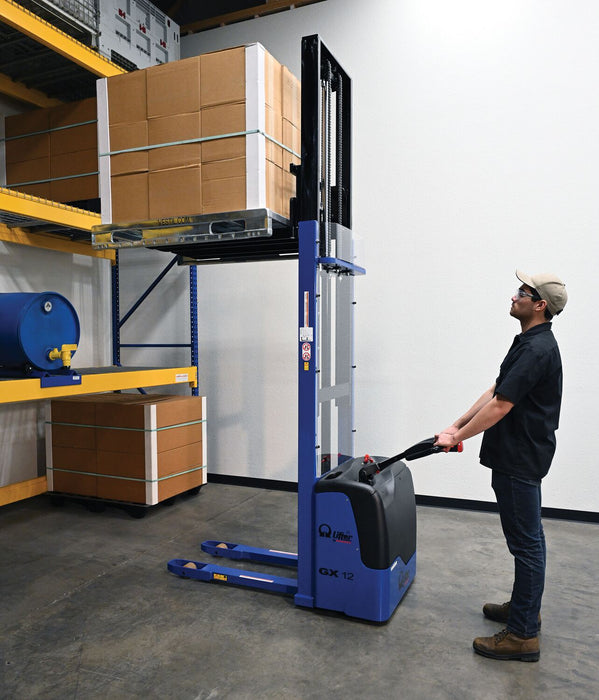

Boost productivity and reduce operator strain with the Vestil PMC-S-FF-137, a self-propelled electric stacker designed for effortless material handling in distribution, warehousing, and shipping facilities. This semi-electric stacker features powered lift and drive, enabling smooth and safe transportation of skids, pallets, and bulk containers.
Built with a durable steel frame, this powered lift stacker offers exceptional stability and long-lasting performance. The fixed forks over fixed support legs make it ideal for handling open-bottom pallets and skids. A bright blue finish improves visibility in busy work zones, and the compact turning radius (56-1/4") allows tight maneuverability.
Powered by (2) 12V batteries, the unit includes a bright battery level indicator, adjustable handle height, and rugged rubber casters for smooth mobility across a variety of surfaces.
