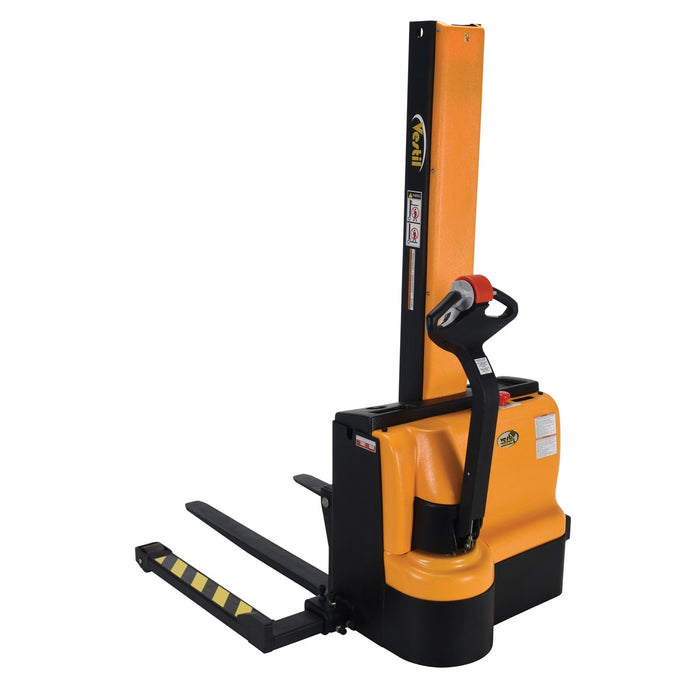

Vestil SNM-62-AA Stacker Narrow Mast Pwr Drive ADJ 62 In SNM-62-AA
Features:
-
Narrow Mast Powered Stacker ideal for warehouses and tight loading areas
-
Ergonomic throttle handle with lift/lower controls and powered drive
-
Powered lift mechanism reduces manual strain
-
Adjustable forks & support legs work with pallets and skids
-
Poly-on-steel steer and load wheels for smooth navigation
-
Electric pallet jack alternative for increased productivity
-
Includes built-in battery charger, level gauge, and safety braking
-
Compact design with semi-electric stacker functionality
Specifications:
| Specification | Value |
|---|---|
| Uniform Capacity | 2,200 lbs |
| Fork Width | 8.3" to 26.75" |
| Fork Length | 42" |
| Lowered Height | 2-1/8" |
| Raised Height | 62" |
| Power Source | (2) DC 12V Batteries |
| Steer/Load Wheels Material | Poly-On-Steel |
| Front Casters (Qty) | 2 |
| Front Caster Diameter | 4" |
| Front Caster Width | 3" |
| Back Caster (Qty) | 1 |
| Back Caster Diameter | 6" |
| Back Caster Width | 2" |
| Drive Wheel Diameter | 10" |
| Drive Wheel Width | 4" |
| Drive Motor | 1.0 KW |
| Lift Motor | 2.0 KW |
| Operation (Full Charge) | 3–4 Hours |
| Operation (Intermittent Use) | 8 Hours |
| Adjustable Handle Height | 48" |
| Handle Diameter | 1-5/16" |
| Style | Adjustable Forks / Support Legs |
The Vestil SNM-62-AA Narrow Mast Stacker with Powered Drive and Powered Lift is designed for demanding environments such as shipping and manufacturing facilities, offering a compact yet powerful solution for pallet stacking and material handling in confined spaces.
This semi-electric stacker features an ergonomic throttle-style handle for smooth infinite forward and reverse speed adjustments, allowing precise control during operation. The powered lift stacker uses a robust 2.0 KW lift motor and 1.0 KW drive motor, providing efficient lifting and driving performance. Dual DC 12V batteries power the unit, offering 3–4 hours of full operation or up to 8 hours under intermittent use.
Its adjustable forks and adjustable support legs accommodate both pallets and skids, enhancing versatility. The unit rides on poly-on-steel steer/load wheels and includes casters for smooth movement and maneuverability in tight aisles. A built-in battery charger and gauge make recharging simple and efficient.
