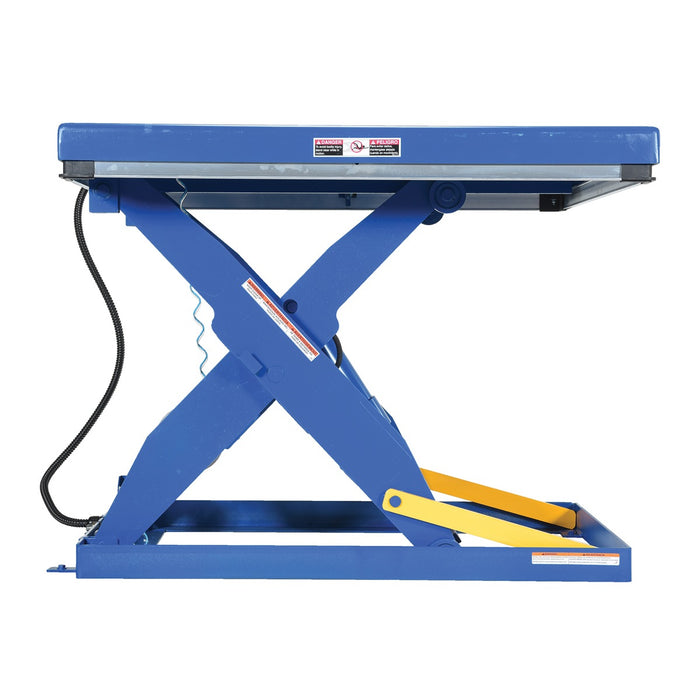

Vestil Air/Hydra Scissor Lift Table 3K 24.375 W x 48.375 L AHLT-2448-3-43
Features:
Air-Powered Convenience – This Rotary Hydraulic Scissor Lift Table utilizes standard factory air (80 psi @ 80 cfm) through a filter, regulator, and lubricator for reliable operation in diverse work environments.
Ergonomic Lifting Solution – Raise and lower materials to the optimal height (up to 43 inches) to reduce operator fatigue and improve productivity. The hydraulic scissor lift table design ensures smooth, stable elevation.
Safety First – Features include a pneumatic upper travel limit switch, safety toe guards, a cylinder with internal safety velocity fuse, and lifetime-lubricated sleeve bearings for long-term reliability.
Simple Operation – Comes with a two-button hand control, 3/4" minimum air supply line, and a 1/2" air inlet size—ready for use in most industrial air systems.
Specifications
| Attribute | Value |
|---|---|
| Uniform Capacity | 3,000 lbs |
| Raised Height | 43 in |
| Minimum Air Pressure | 80 psi |
| Air Volume Required | 80 cfm |
| Minimum Air Supply Line | 3/4 in |
| Air Inlet Size | 1/2 in |
| Weight | 689 lbs |
| Dimensions | 53 × 53 × 18 in |
Upgrade your material handling efficiency with the Vestil AHLT Rotary Air/Hydraulic Scissor Lift Table. Engineered for durability and performance, this hydraulic lift table combines air-powered lifting with precision hydraulic control, making it ideal for industrial, warehouse, and ergonomic applications.
