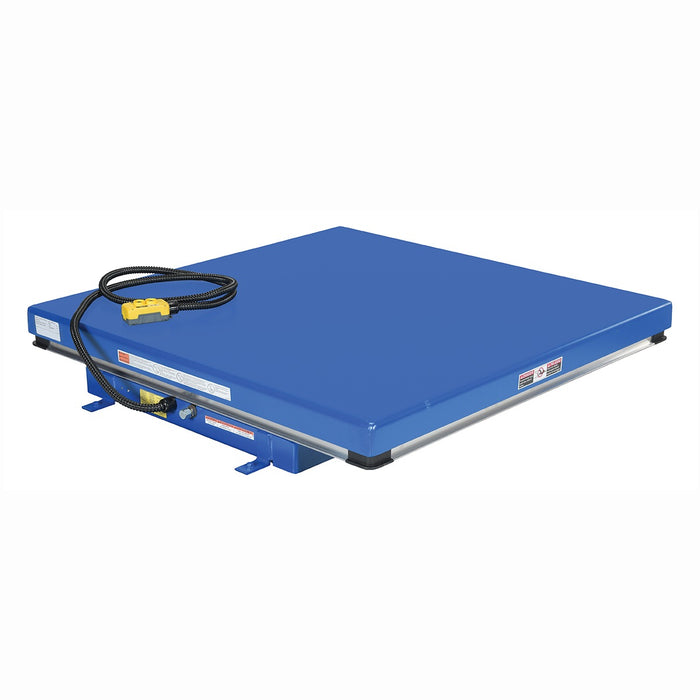

Vestil Air/Hydra Scissor Lift Table 3K 48.375 W x 48.375 L AHLT-4848-3-43
Features:
-
Rotary hydraulic lift system powered by factory air
-
Connects easily to air supply (requires 80 PSI & 80 CFM minimum)
-
Built-in filter, regulator, and lubricator compatibility
-
Hydraulic scissor lift table design ensures smooth vertical movement
-
Pneumatic upper travel limit switch to prevent over-travel
-
Integrated safety toe guards protect against pinch points
-
Internal safety velocity fuse within the hydraulic cylinder
-
Two-button hand control for precise lift operation
-
Maintenance-free, lifetime-lubricated sleeve bearings
Specifications:
| Feature | Details |
|---|---|
| Model | AHLT-4848-3-43 |
| Brand | Vestil |
| Power Type | Rotary Air / Hydraulic |
| Uniform Capacity | 3,000 lbs |
| Raised Height | 43 in |
| Air Pressure Required | 80 PSI |
| Air Volume Required | 80 CFM |
| Air Inlet Size | 1/2 in |
| Air Supply Line | 3/4 in minimum |
| Weight | 780 lbs |
| Dimensions | 48 × 48 × 14 in |
| Available Sizes | 24.375"W × 48.375"L, 30.375"W × 60.375"L, 40.375"W × 48.375"L, 42.375"W × 72.375"L, 48.375"W × 48.375"L |
Boost efficiency and safety in your facility with the Vestil AHLT-4848-3-43 Rotary Air/Hydraulic Scissor Lift Table. This hydraulic lift table utilizes the convenience of factory air to deliver powerful, controlled lifting—ideal for a wide range of industrial applications. It combines air lift table functionality with hydraulic scissor table cart stability, offering a versatile solution for ergonomic material handling.
