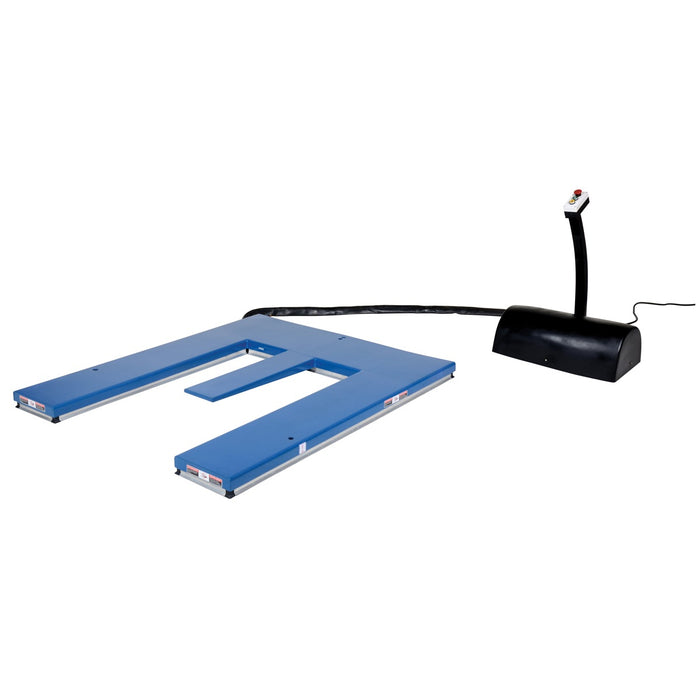

Vestil E Type Electric Lift Table 3000 lbs. EHE-3
Features:
-
Compatible with Vestil EHE models – ideal for heavy-duty material handling
-
Electric lift operation with ergonomic 24V push-button control
-
Steel quick lift design provides high surface area and load stability
-
Pressure relief valve ensures consistent, safe performance
-
Remote power unit simplifies maintenance and operation
-
Perfect for use with aluminum quick lift and powered quick lift systems
-
Enhanced safety: electric toe guards, velocity cylinders, and emergency stop
-
Ideal for lifting pallets, bins, and components in tight or low-clearance areas
Specifications:
| Specification | Details |
|---|---|
| Voltage / Phase | 115 / Single |
| Control Box Voltage | 24V |
| Weight | 805 lbs |
| Dimensions (L x W x H) | 64 × 64 × 16 in |
| Capacity | 2000 lbs, 3000 lbs |
| Deck Inside Width | 29-3/4 in |
| Remote Power Unit Width | 14-3/4 in |
| Remote Power Unit Length | 26-3/4 in |
| Remote Power Unit Height | 9-1/2 in |
The Vestil EHE-3 Low Profile Electric Lift Table is engineered for manufacturing, warehouse, and distribution environments requiring safe and efficient material handling. Constructed with a durable steel “E” frame, this electric lifter offers a center support beam to minimize platform deflection and maximize stability under heavy loads.
This powered lift table includes a remote electric power unit with an integrated pressure relief valve to prevent overload and ensure smooth lowering. The 24V control box features ergonomic ‘up and down’ push-button controls, allowing operators to lift pallets and products to optimal working heights — minimizing bending, twisting, and workplace injuries.
Key safety enhancements include electric toe guards, emergency stop buttons, and velocity cylinders for controlled movement, making it one of the safest and most user-friendly powered quick lifts on the market.
