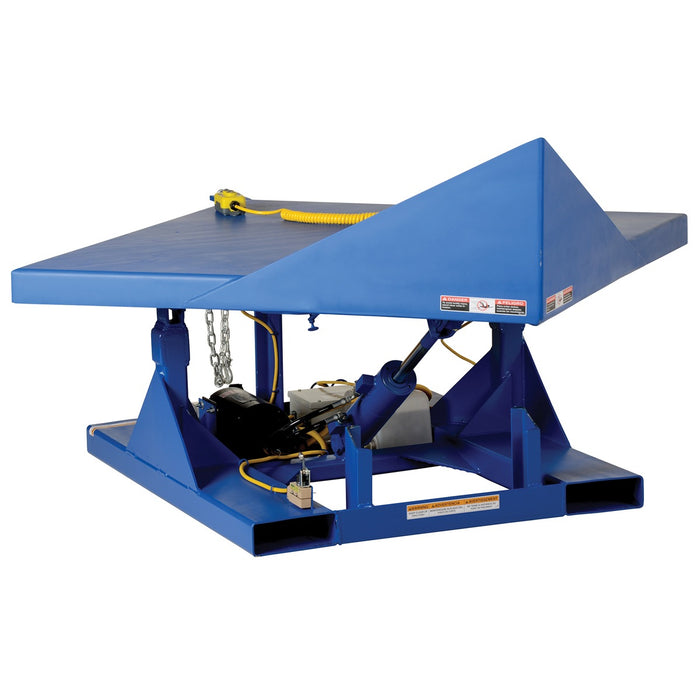

Vestil Elect/Hydraulic Corner Tilter 4000lbs 48 X 48 EMC-4848-4
Vestil EMC-4848-4 Electric/Hydraulic Corner Tilter – 2,000 & 4,000 lb Capacity
Features
-
30° hydraulic tilt angle for enhanced access to contents
-
Dual capacity options: 2,000 lbs and 4,000 lbs
-
Electric/hydraulic power system with 2 HP AC motor
-
Push-button controls for safe, effortless operation
-
Ergonomic design reduces workplace strain and injury
-
Built-in fork pockets for convenient forklift transport
-
Compatible with 42"x42" and 48"x48" pallets and containers
Specifications
| Feature | Details |
|---|---|
| Model | EMC-4848-4 |
| Brand | Vestil |
| Platform Sizes | 42" x 42", 48" x 48" |
| Tilt Angle | 30 degrees |
| Capacity Options | 2,000 lbs / 4,000 lbs |
| Motor Type | AC Electric |
| Motor Horsepower | 2 HP |
| Voltage/Phase | 460V / 3 Phase |
| Platform Height | 24 inches |
| Fork Pocket Width/Height | 7-5/8" W x 2-5/8" H |
| Fork Pocket Center | 30 inches |
| Weight | 674 lbs |
| Dimensions | 73" x 68" x 39" |
Applications
-
Workstation packaging: Load, access, and pack boxes efficiently
-
Assembly lines: Ergonomic tilting for repetitive handling tasks
-
Warehouse operations: Improve pallet and crate access
-
Distribution centers: Tilt baskets and containers for easy sorting
-
Industrial plants: Reduce operator strain and boost productivity
Increase safety and productivity with the Vestil EMC-4848-4 Electric/Hydraulic Corner Tilter, a powerful and ergonomic solution for handling pallets, crates, boxes, and baskets. Designed for maximum efficiency in material handling, this corner tilter delivers up to 30° of tilt, reducing operator fatigue and repetitive motion injuries during loading, packing, and sorting operations.
Built with a rugged AC-powered hydraulic motor, the EMC series features push-button controls and built-in fork tubes for easy forklift relocation. Whether you're working in a warehouse, manufacturing plant, or packaging station, this electric/hydraulic corner tilter simplifies your workflow while protecting your team.
