Vestil Ground Tilter 4K Capacity 45 Degree Tilt GLT-4000
Features
-
Compatible with pallet trucks and pallet jacks for easy ground-level loading
-
Tilts containers up to 45° for optimal ergonomic access
-
Electric hydraulic lift table with a 2 HP motor and remote external power unit
-
High-lip tilt platform and removable bar for handling smaller containers
-
Pinch point guards enhance worker safety during operation
-
Durable steel construction ideal for heavy-duty industrial environments
-
Raise/Lower Time (unloaded): 10/6 seconds
-
Includes hand pendant control for simple lift and tilt operation
Specifications
| Attribute | Value |
|---|---|
| Uniform Capacity | 4000 lbs |
| Platform Width x Length | 51" x 49" |
| Level Height | ½" |
| Maximum Tilt Degree | 45° |
| Lip Height | 17.5" |
| Lowered Height | ½" |
| Motor Power | 2 HP |
| Voltage / Phase | 460V / 3-phase |
| Remote Power Unit Cover (W x L x H) | 12" x 32.5" x 12.5" |
| Raise / Lower Time (unloaded) | 10 / 6 sec |
The GLT-4000 Ground Lift Electric Hydraulic Tilt Table is a premium solution for industrial tilting applications that require floor-level container access and compatibility with pallet trucks or pallet jacks. Designed for ergonomic positioning, it allows operators to raise and tilt containers safely and efficiently.
Ideal for manufacturing and warehouse operations, this industrial tilt table rotates bins from ground level, improving access to contents while minimizing strain. The tilt platform features a 17.5-inch high lip on the tilt side and a removable positioning bar, ensuring stability for smaller loads.

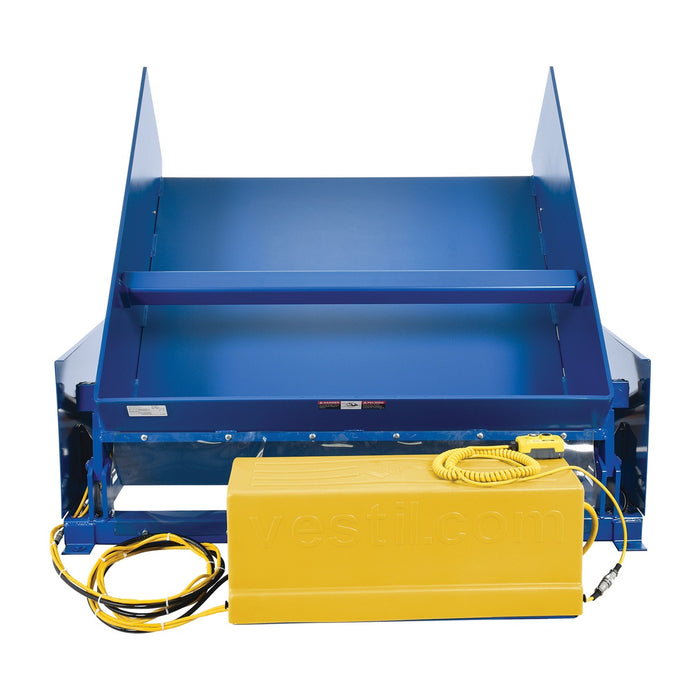

Engineered for safety, the Vestil Ground Lift Tilter is equipped with pinch point guards, while the external power unit includes a protective steel cover. A hand pendant control enables precise operation, letting users tip, tilt, and position containers with ease.
