Vestil Lift & End Tilt Scissor Table 2000 lbs. 36 x 48 EHLTT-3648-2-47
Features
-
Performs both lifting and tilting operations for ergonomic positioning
-
Restraining chain and 12" lip secure load during tilt movement
-
Electric toe guard protects pinch points on entry side
-
Velocity fuse maintains height during hydraulic failure
-
Four-button pendant control for easy operation
-
45° end tilt standard (side tilt available)
-
Optional accordion skirting available for both lift and tilt systems
-
Durable construction for long-lasting industrial use
Specifications
Attribute | Detail |
---|---|
Model | EHLTT-3648-2-47 |
Platform Size (in.) | 36" x 48", 48" x 48" |
Platform Length | 48 in. |
Deck Lip Height | 12 in. |
Coil Cord Length | 96 in. |
Tilt Range | 45° End Tilt (Side Tilt Optional) |
Weight | 1204 lbs |
Voltage / Phase | 460V / 3-Phase |
Capacity Options | 1000 lbs to 5000 lbs |
Dimensions (in.) | 50 x 44 x 28 |

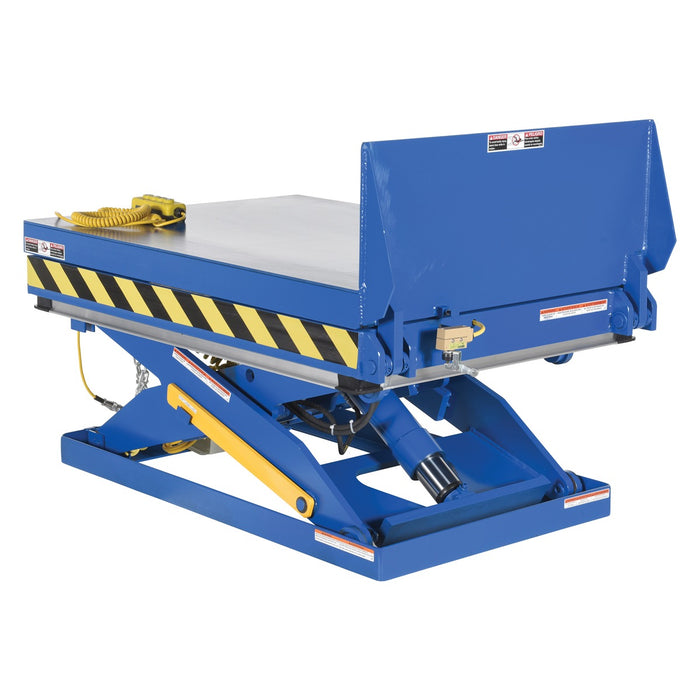

The Vestil EHLTT-3648-2-47 Lift and Tilt Scissor Table is a heavy-duty hydraulic lift table engineered to lift and tilt loads for optimal ergonomics and safety. This industrial lift table supports both lifting and tilting operations, making it ideal for assembly lines, packaging, and material handling applications. A restraining chain and deck lip secure the load during tilting, while the 45-degree end tilt feature enhances accessibility. Designed for reliability and control, it comes with a four-button hand pendant, electric toe guard, velocity fuses, and upper limit switch to safeguard operators during operation.
Engineered with a tilting scissor lift mechanism, this tilt and lift table operates on 460V 3-phase power, with optional accordion skirting to protect internal components. Whether you're looking for a tilt lift table or an electric scissor lift table, the EHLTT-3648-2-47 is built to improve efficiency and reduce workplace injury risks.
