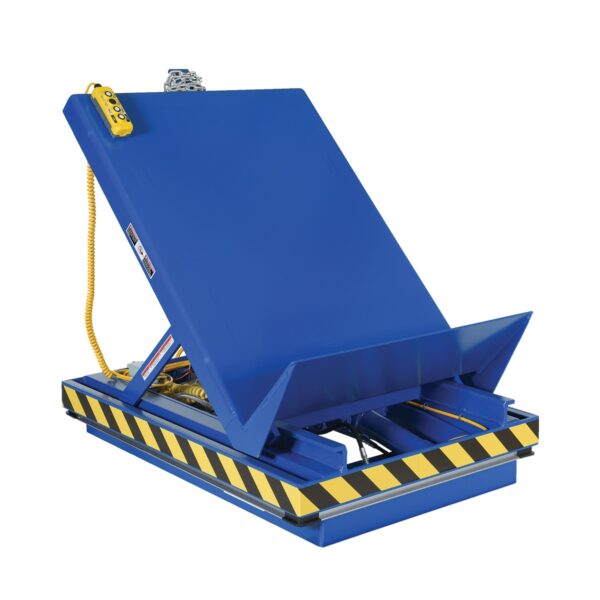

Vestil Lift & End Tilt Scissor Table 4000 lbs. 36 x 48 EHLTT-3648-4-47
Features
-
Performs lift and tilt functions in one industrial-grade unit
-
Restraining chain and lip secure load during tilting operations
-
Entry-side electric toe guard prevents pinch-point injuries
-
Equipped with velocity fuses to maintain platform height
-
Four-button hand pendant for easy control
-
Includes upper travel limit switch to protect motor
-
Standard 45° end tilt; optional side tilt available
-
Optional accordion skirting enhances safety
-
Suitable for palletizing, machine feeding, and ergonomic work positioning
-
Heavy-duty hydraulic scissor lift table built for industrial environments
Specifications
| Attribute | Value |
|---|---|
| Platform Length | 48 in |
| Deck Lip Height | 12 in |
| Coil Cord Length | 96 in |
| End Tilt | 45 degrees |
| Standard Voltage/Phase | 460V / 3 Phase |
| Available Capacities | 1000, 2000, 3000, 4000, 5000 lbs |
| Available Platform Sizes | 36" x 48", 48" x 48" |
| Weight | 1206 lbs |
| Dimensions | 44 × 55 × 27 in |
The Vestil EHLTT-3648-4-47 Lift & Tilt Scissor Table is designed to streamline material handling by combining the functionality of a hydraulic lift table and a tilting platform in one efficient unit. This electric scissor lift performs both lifting and tilting operations, making it ideal for ergonomic positioning and improved worker productivity.
Built with safety and durability in mind, this industrial lift table includes a restraining chain and lip to secure loads during tilt. Key safety features include an entry-side electric toe guard to prevent pinch point injuries during lowering, velocity fuses to hold the scissor lift platform in position during a hydraulic failure, and a four-button hand pendant control for precision handling. An upper travel limit switch reduces motor wear by stopping the table at full height, while a maintenance prop adds another layer of protection.
This lift tilt table includes a 45-degree end tilt as standard, with optional side tilt configurations. Accordion skirting is available for added operator safety on both lifting and tilting sections.
Perfect for assembly lines, packaging, or shipping operations, the tilt and lift table ensures fast, ergonomic access to materials, reducing back strain and increasing throughput.
