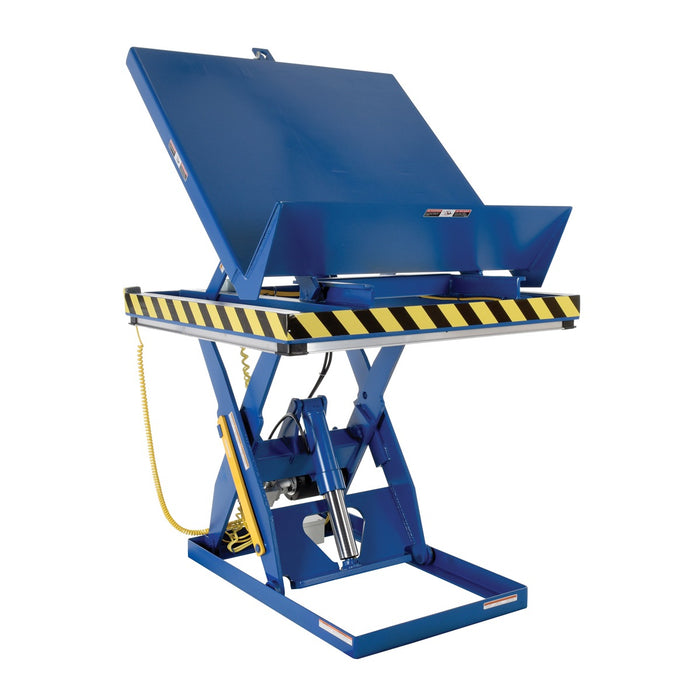

Vestil Lift & End Tilt Scissor Table 5000 lbs. 48 x 48 EHLTT-4848-5-47
Features
-
Heavy-duty hydraulic lift and tilt scissor table for industrial applications
-
End tilt standard at 45 degrees for improved ergonomic access
-
Electric toe guard protects workers from pinch points
-
Velocity fuses maintain platform height in case of failure
-
Four-button pendant control for precise operation
-
Restraining chain and lip secure load during tilt
-
Includes upper limit switch and maintenance prop
-
Available with accordion skirting (optional) for added safety
-
Ideal for warehouses, assembly lines, and manufacturing floors
-
Part of the Vestil EHLTT product family
Specifications
| Specification | Detail |
|---|---|
| Model | EHLTT-4848-5-47 |
| Platform Size | 48" x 48" |
| Load Capacity | 1000 lbs – 5000 lbs |
| End Tilt Angle | 45° |
| Deck Lip Height | 12" |
| Coil Cord Length | 96" |
| Standard Voltage / Phase | 460V / 3-phase |
| Product Weight | 1482 lbs |
| Dimensions (L x W x H) | 53" × 56" × 29" |
| Lift Type | Electric Hydraulic Scissor Lift |
The Vestil EHLTT-4848-5-47 Lift and Tilt Scissor Table is a powerful solution for lifting and tilting heavy industrial loads with maximum safety and efficiency. Designed for ergonomic material handling, this hydraulic lift table provides a secure and reliable way to raise and tilt pallets, bins, and containers for easier access and improved productivity.
This tilting table features a durable steel platform with a 45-degree end tilt, making it ideal for applications that require both vertical and angular positioning. A restraining chain and lip keep the load in place during tilt operations. The electric toe guard helps protect operators from pinch points during descent.
Equipped with a four-button hand pendant control, velocity fuses for platform stability, an upper limit switch to reduce motor wear, and a maintenance safety prop, this industrial lift table is engineered with user safety in mind. Optional accordion skirting is available for added protection.
Whether you're looking for a scissor lift, tilt table, or combination tilt and lift equipment, the Vestil EHLTT series offers unmatched durability and performance.
