Vestil Linear Bench Top Tilter 500lbs 28"W X 36"L BTT-5-36

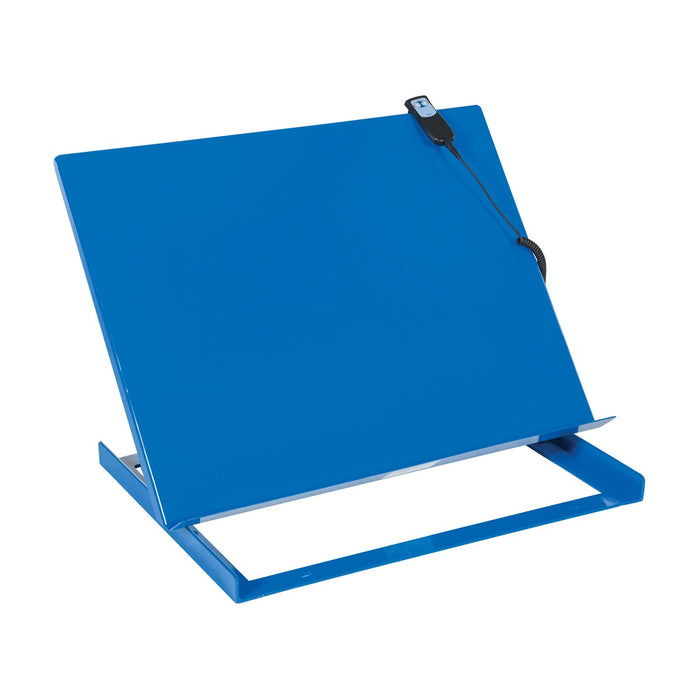

Vestil BTT-5-36 Bench Top Tilter
Features
-
Compatible with most industrial tables, benches & lift tables
-
Sliding tilt mechanism maintains balance and stability
-
Manual or powered control options for flexibility
-
Front locking safety tabs and roller deck for secure, easy handling
-
Built from durable welded steel for long-term use
Specifications
| Specification | Detail |
|---|---|
| Weight | 127 lbs |
| Dimensions | 48 × 40 × 10 in |
| Capacity Options | 500 lbs, 600 lbs, 1,000 lbs |
| Platform Depth | 28 in |
| Lip Height | 3 in |
| Attachment Method | Bolt On |
| Mounting Holes | 4 |
| Hole Diameter | 3/8 in |
| Plate Thickness | 1/4 in |
| Size Options | 28" x 36", 28" x 46" |
Applications
-
Assembly line tilt workstations
-
Battery maintenance & installation
-
Material handling for small parts & tools
-
Packaging & inspection stations
-
Industrial ergonomic improvements
Boost your productivity and safety with the Vestil BTT-5-36 Bench Top Tilter, a robust and reliable work positioner designed to improve assembly line ergonomics. This tilt workstation is ideal for industrial environments that demand frequent lifting, tilting, or precise positioning of heavy components.

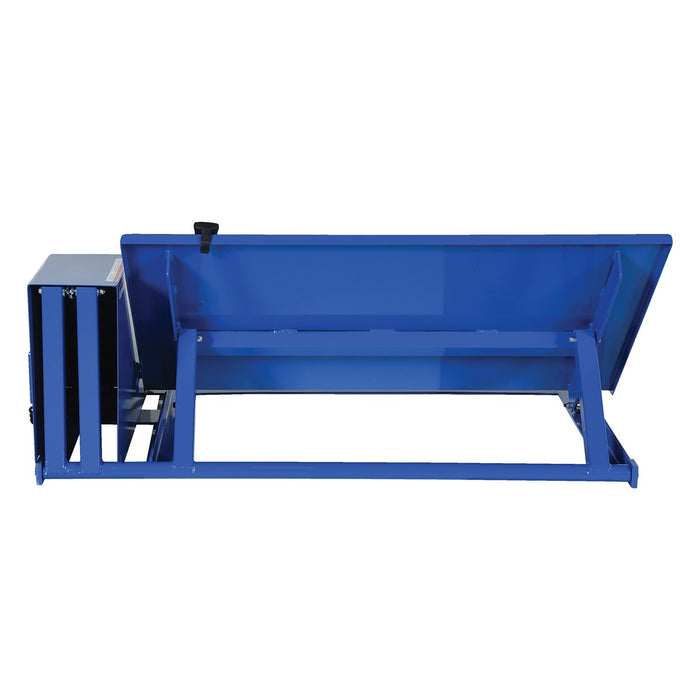

The Bench Top Tilter attaches easily to most work benches, table tops, or mobile lift tables, thanks to its bolt-on base with slotted holes. Designed to slide back while tilting, it ensures optimal balance by maintaining the center of gravity over the frame—minimizing strain and enhancing worker safety.

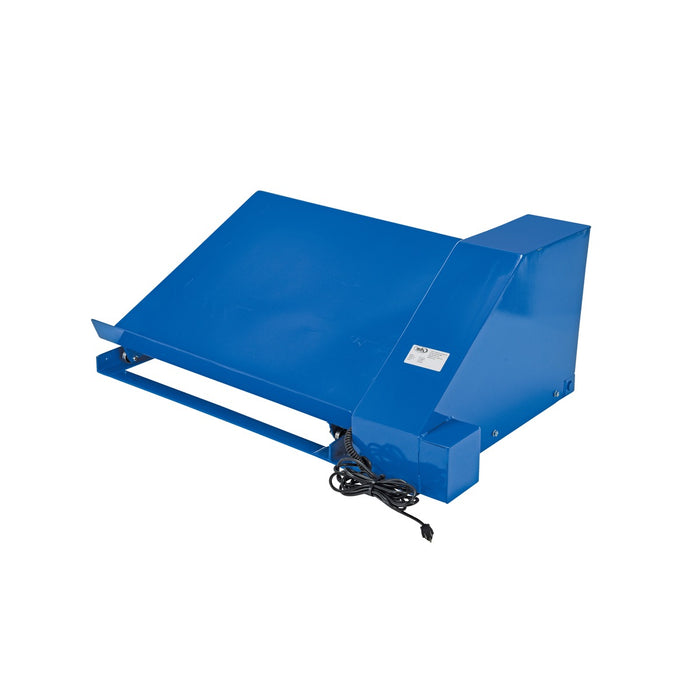

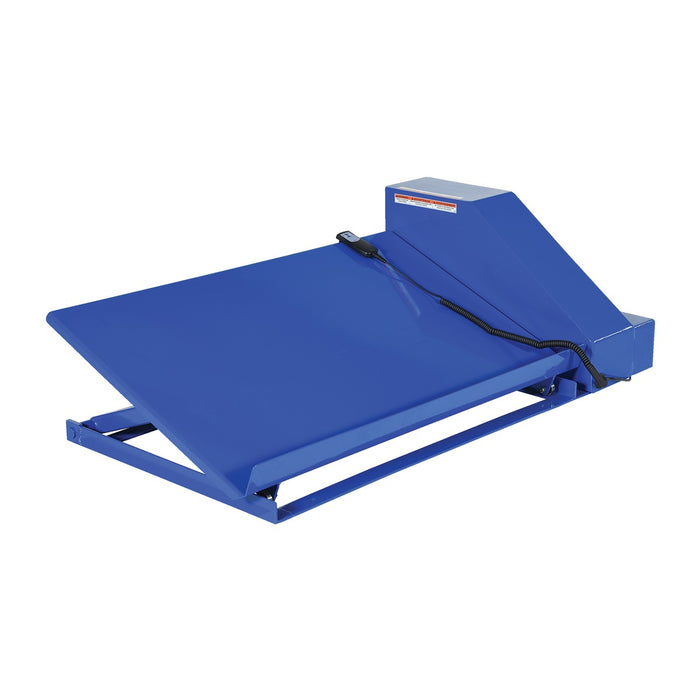

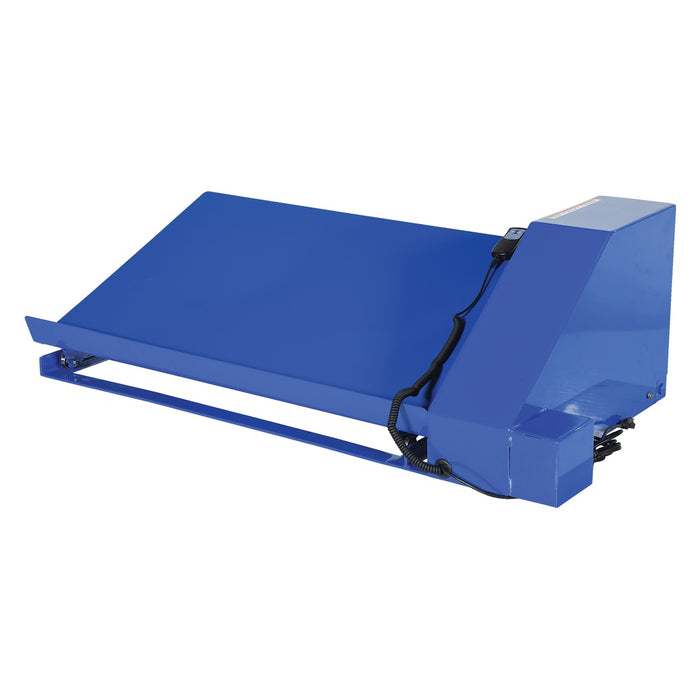

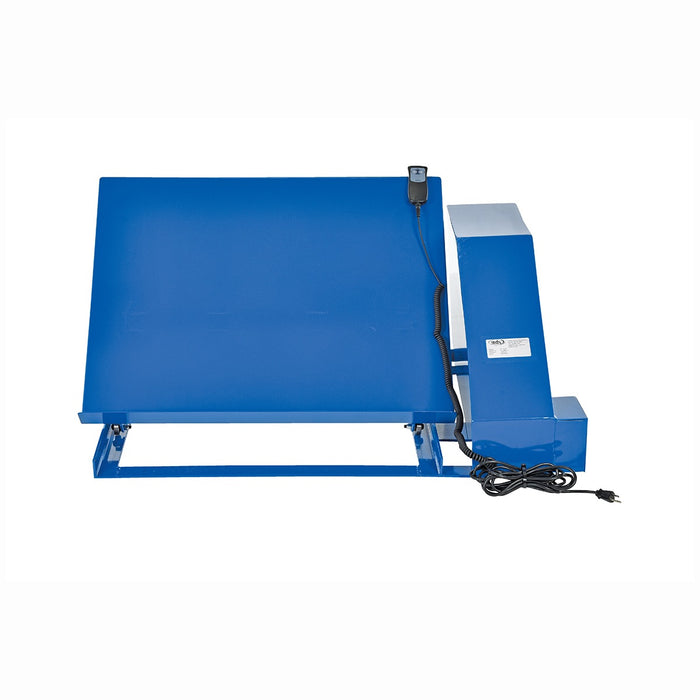

Choose from manual models (adjustable when unloaded) or linear actuated models featuring a push-button pendant control for powered adjustments. Constructed from welded steel, this heavy-duty tilter supports loads up to 1,000 lbs, making it a critical tool for tasks like fork truck battery maintenance or component assembly.
