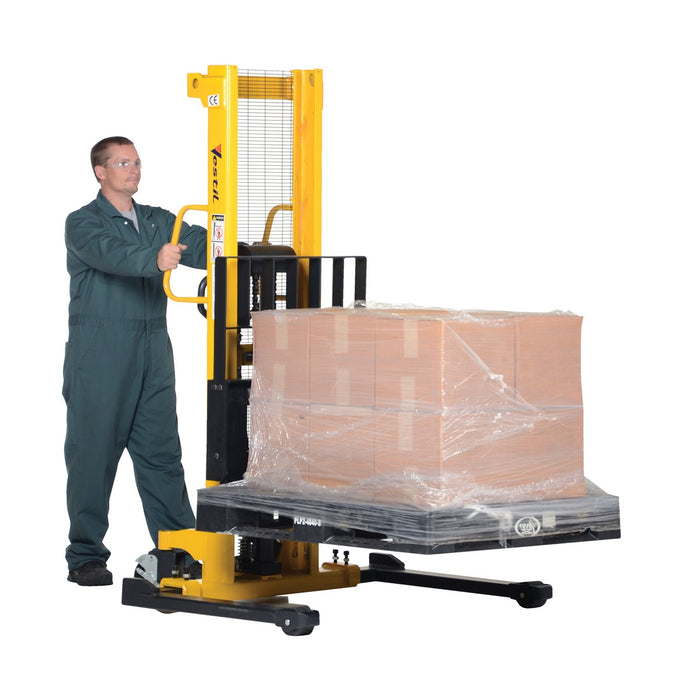

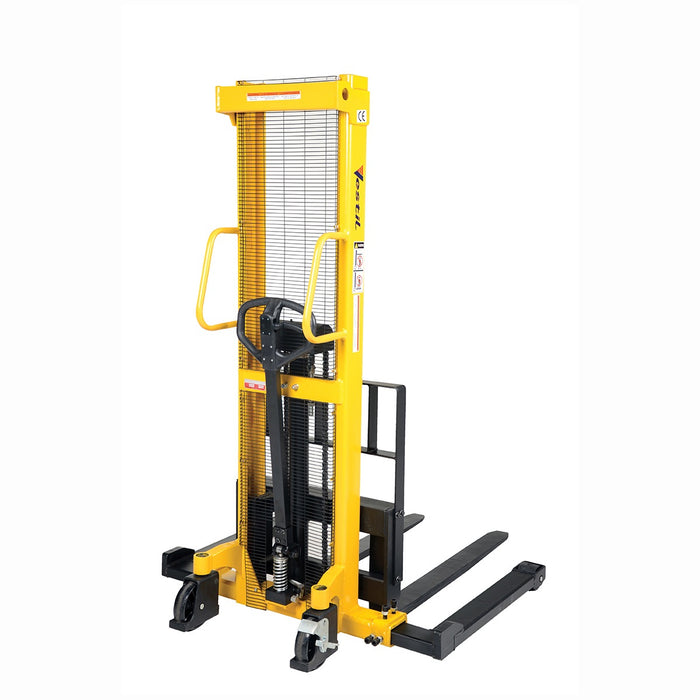

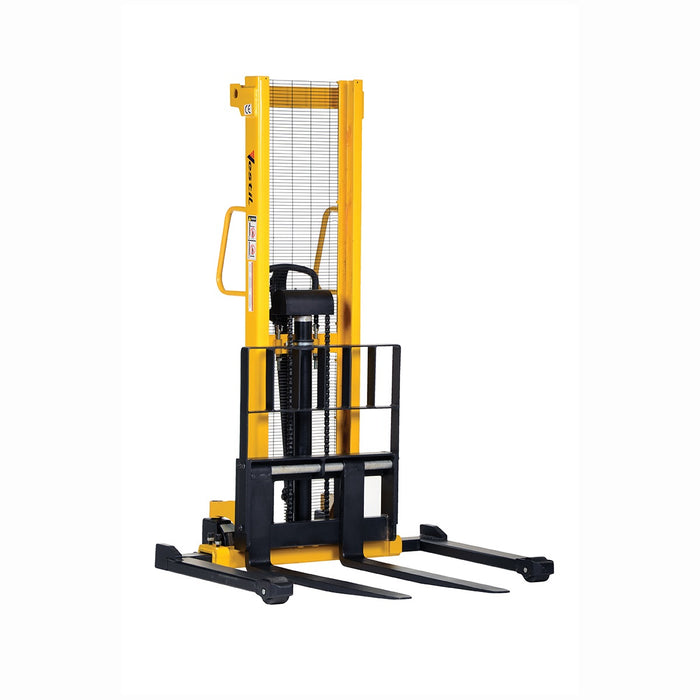

Vestil Manual Stacker Adjustable Forks/Legs 2K VHPS-2000-AA
Features
-
Heavy-duty design handles up to 2,000 lbs of uniform load
-
Manual hand winch stacker mechanism for smooth, controlled lifting
-
Adjustable forks and legs accommodate various pallet sizes
-
Hydraulic stacker alternative with no power required
-
Maintenance-free operation with steel cable lifting system
-
Welded mesh guard provides operator safety and visibility
-
Caster configuration includes two swivel wheels with brakes and two rigid wheels
-
Compatible with popular models including CWS-60, HYS-60, and HYS-96
Specifications
| Specification | Value |
|---|---|
| Uniform Capacity | 2,000 lbs |
| Service Range | 2 to 63 in |
| Horizontal Load Center | 24 in |
| Straddle Leg I.D. (Min/Max) | 38 / 50 in |
| Fork Adjustment O.D. (Min/Max) | 7-7/8 / 26-3/4 in |
| Rear Casters (Qty/Dia/Type) | 2 / 7 in / Swivel w/ Brake |
| Front Casters (Qty/Dia/Type) | 2 / 4 in / Rigid |
| Lift per Handle Pump | 3/4 in |
| Fork Dimensions | 3-15/16 in W x 42-1/8 in L |
| Operation Type | Hand Winch |
| Travel Distance (Min/Max) | 36 / 64 in |
| Leg Width | 4 in |
| Unit Weight | 860 lbs |
| Dimensions (L x W x H) | 67 x 64 x 88 in |
The Manual Hand Winch Stacker is built to meet the demands of the toughest material handling applications. Ideal for warehouses, factories, and distribution centers, this manual stacker offers precision lifting without the need for electrical power. Designed as a versatile alternative to powered stackers, it’s perfect for jobs where controlled, quiet lifting is essential.
Built with a heavy-duty steel mast and a maintenance-free hand winch system, this unit ensures smooth and reliable operation. The full-height push handle enhances visibility and control, while the rigid and swivel casters with brakes deliver effortless maneuverability. Whether you're replacing a DC powered stacker or upgrading from a hydraulic hand pump stacker, this model is engineered for performance and safety.
Compatible with leading alternatives like Vestil VHPS-2000-AA, HYS-120-LH, and HYS-2K, this stacker is an excellent substitute for high-cost walkie stackers, electric pallet jacks, and electric lift trucks.
