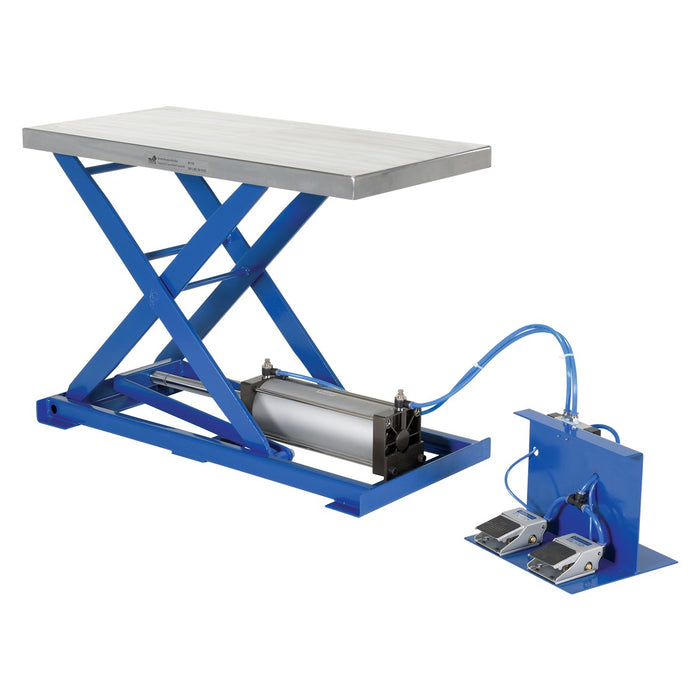

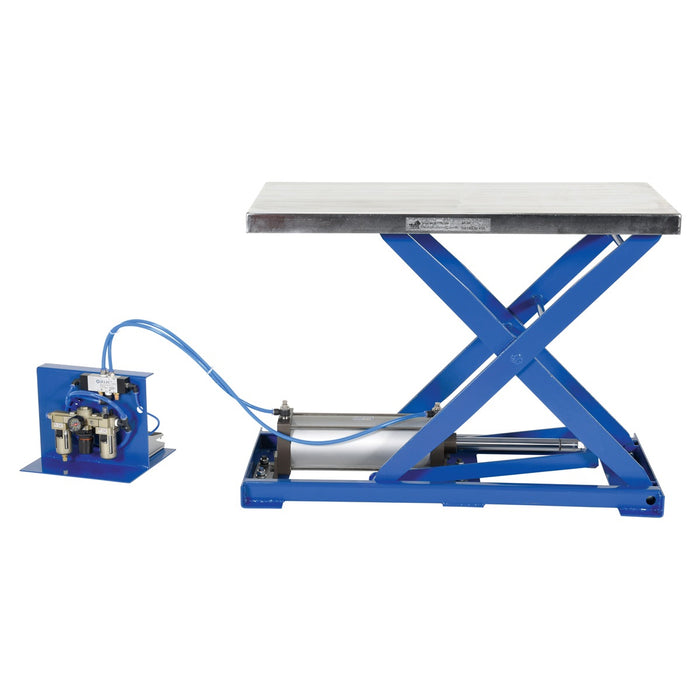

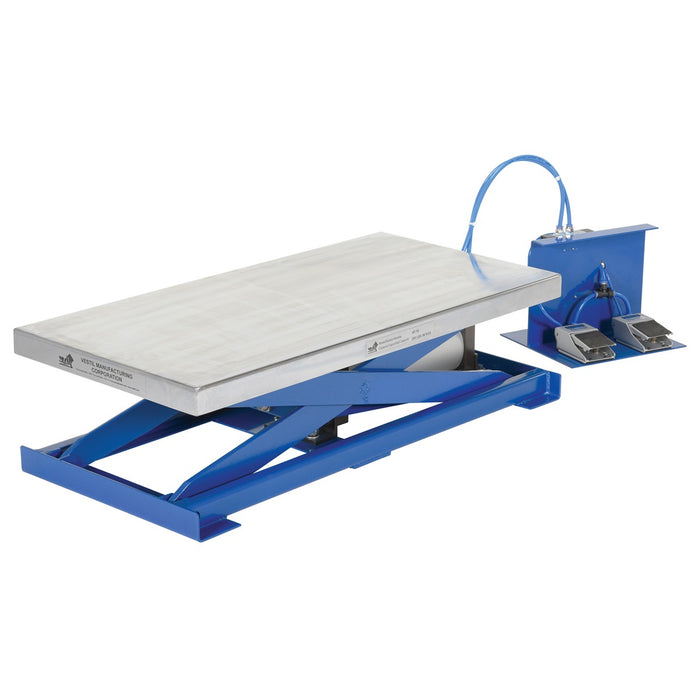

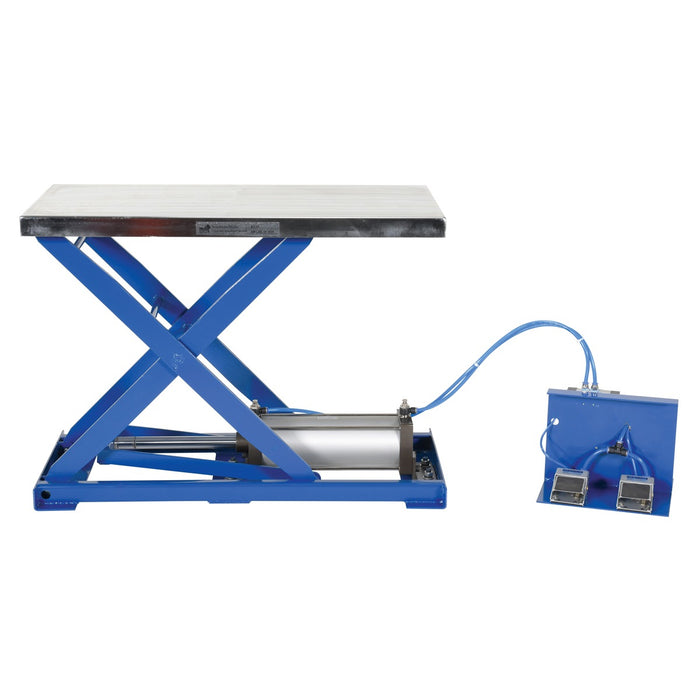

Vestil Pneumatic Scissor Lift Table 200 lbs. AT-20
Features:
-
Pneumatic air lift table powered by shop air—no hydraulics or electricity needed
-
Ideal for ergonomic lifting in environmentally sensitive applications
-
Chrome plated platform resists wear and ensures durability
-
Foot control pedal included for hands-free operation
-
Compact design enables use in confined workspaces
-
Works as a reliable alternative to traditional hydraulic lift tables or scissor lift carts
Specifications:
| Attribute | Value |
|---|---|
| Platform Width (in.) | 19-1/2 |
| Platform Length (in.) | 39-1/2 |
| Platform Material | Chrome Plated |
| Lowered Height (in.) | 11-1/4 |
| Raised Height (in.) | 29-1/2 |
| Foot Control Height (in.) | 10 |
| Lift Time Loaded/Unloaded (sec.) | 13.31 / 8.31 |
| Lower Time Loaded/Unloaded (sec.) | 6.41 / 9.00 |
| Cylinder Bore Diameter (mm) | 32 |
| Weight | 229 lbs |
| Dimensions | 48 × 40 × 29 in |
| Capacity | 200 lbs / 400 lbs |
Upgrade your material handling efficiency with the Vestil AT-20 Pneumatic Air Lift Table, a reliable scissor lift table engineered for clean environments and ergonomic lifting. This air-powered lift platform operates using only shop air—no electrical power or hydraulic oil required—making it the perfect solution for environmentally sensitive applications.
Whether in manufacturing, assembly, or packaging, this hydraulic lift table alternative offers a smooth and safe lifting experience with foot control operation for precision positioning.
