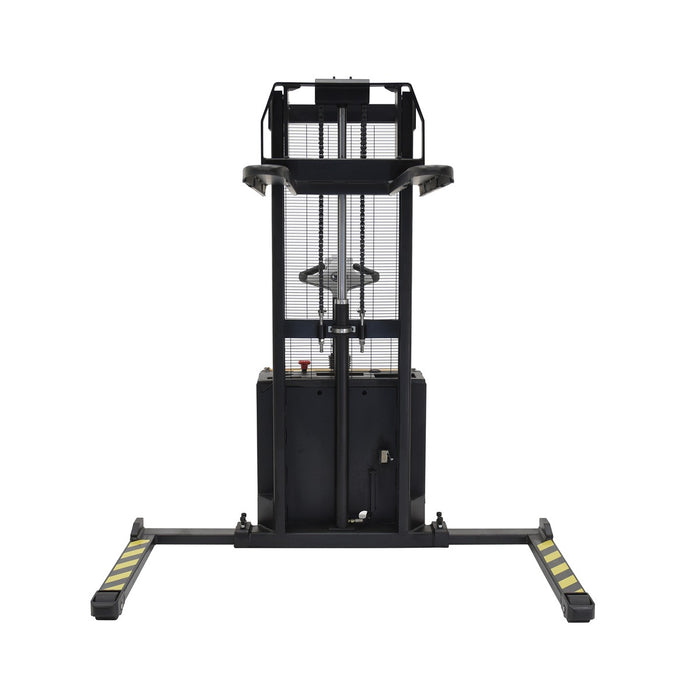

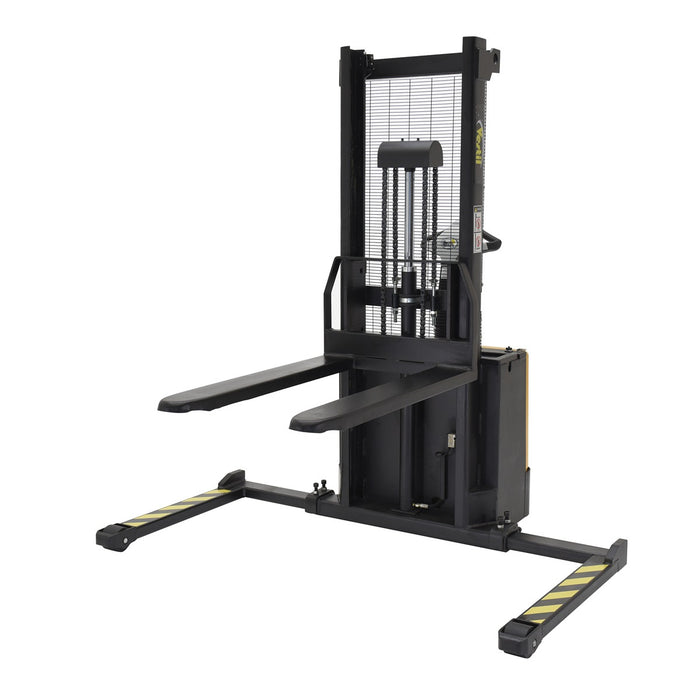

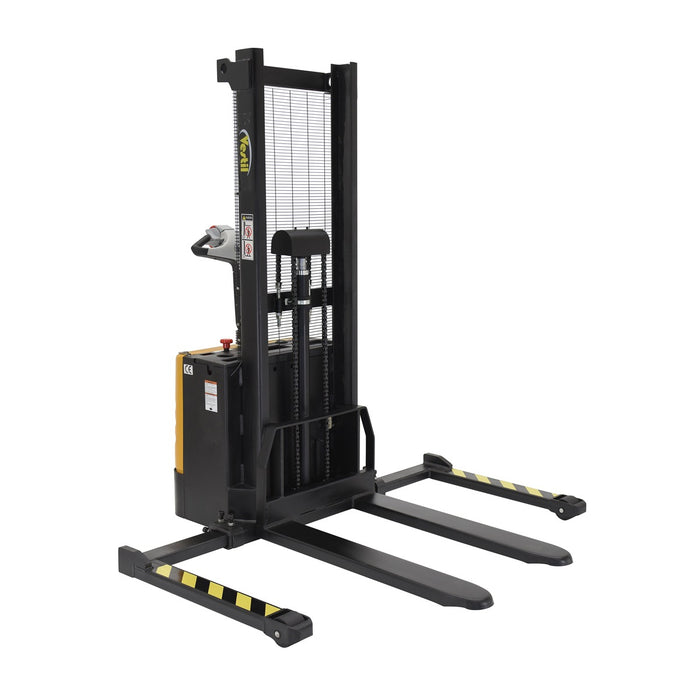

Vestil Fixed Fork-Lift Stacker 62″ Raised HT S-62-FA
Features
-
Fully-powered pallet stacker with electric drive and lift
-
High-torque DC motors (Drive & Lift: 24V) for demanding tasks
-
Fingertip raise/lower buttons for precise load control
-
Ergonomic throttle for seamless directional movement
-
Emergency reverse belly switch with safety cut-off system
-
Electromagnetic brake with dead-man functionality
-
Lead-acid battery system with built-in charger and level gauge
-
Poly-on-steel wheels for smooth mobility
-
Ideal for use as a stacker forklift, walkie stacker, or powered pallet jack
Specifications
| Specification | Value |
|---|---|
| Uniform Capacity at 0″ to 62″ Raised Height | 2,000 lb |
| Fork Width | 26-3/4 in |
| Individual Fork Width | 5.9 in |
| Fork Length | 42 in |
| Lowered Height | 2-1/2 in |
| Raised Height | 62 in |
| Leg Width (Min./Max.) | 38-3/16 – 50 in |
| Drive Motor | DC 24V |
| Lift Motor | DC 24V |
| Battery | (2) 12V Lead Acid |
| Operation (Full Charge) | 3–4 hours continuous |
| Operation (Intermittent Use) | Up to 8 hours |
| Drive Wheel (Qty/Dia/Width) | 1 / 10 in / 3-3/8 in |
| Front Wheels (Qty/Dia/Width) | 2 / 4 in / 2.91 in |
| Stabilizer Wheels (Qty/Dia/Width) | 2 / 4 in / 2 in |
| Wheel Material | Poly-on-Steel |
| Dimensions (L × W × H) | 74 × 64 × 87 in |
| Weight | 1,075 lbs |
The Vestil S-62-FA Stacker with Powered Drive and Lift is a fully powered electric pallet stacker engineered for fast and effortless material handling. This semi-electric stacker is ideal for warehouses, distribution centers, and industrial environments requiring heavy-duty lifting and efficient pallet transportation.
Powered by dual 12V batteries, the stacker forklift features a high-torque DC 24V drive and lift motor, ensuring smooth and reliable performance under load. Operators benefit from an ergonomic throttle that allows infinitely variable forward and reverse speed control, along with simple RAISE/LOWER fingertip buttons for precise load positioning.
To enhance workplace safety, this powered stacker includes a proprietary emergency reverse belly switch that automatically reverses direction if activated. If held for more than five seconds, a safety circuit disables the unit until manually reset — protecting operators from harm. The dead-man electromagnetic disc brake ensures immediate stopping when the handle is released.
Whether you're moving skids, pallets, or containers, this walkie stacker provides reliable power, high maneuverability, and enhanced safety—making it the go-to choice for demanding industrial applications.
