Vestil Traction Drive Cart Top Load with Gate NE-CART-2
Features
-
Built-in traction-drive system simplifies transport of heavy loads
-
Electric drive motor powered by dual 12V batteries with onboard 110V charger
-
Speed control throttle enables precise movement and handling
-
Safety features include emergency stop button, horn, and automatic brake
-
Smooth-rolling solid foam tires prevent marking on floors
-
Strong steel frame supports up to 750 lbs overall capacity
-

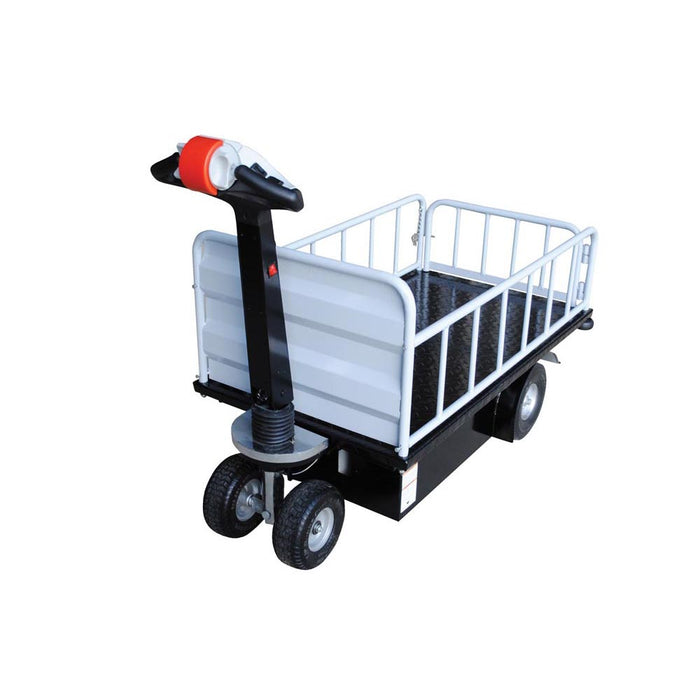

Ergonomic handle design pivots back toward operator for better control
Ideal For
-
Moving supplies, tools, or equipment across industrial, medical, or commercial settings
-
Use as a utility dolly, moving cart, or electric push cart for heavier loads
-
Transport tasks that require traction-drive stability on slight inclines (up to 7°)
Specifications
| Specification | Detail |
|---|---|
| Overall Capacity (lb.) | 750 |
| Platform (L x W) | 46" x 24-3/4" |
| Deck Height | 14" |
| Handle Height | 44-11/16" |
| Railing Height | 12" |
| Steering Wheels (Qty / Type) | 2 / Solid Foam Tires |
| Drive Wheels (Qty / Type) | 2 / Solid Foam Tires |
| Wheel Diameter (Drive/Steer) | 10" / 9" |
| Drive Motor Voltage / Wattage | 24V / 500W |
| Controller | Curtis 1228 |
| Battery Type / Qty | 12V / 2 pcs |
| Charger (Output/Input) | 24V 6A / 110V |
| Max Travel Speed (Loaded/Unloaded) | 2.5 / 2.8 mph |
| Min Travel Speed (Loaded/Unloaded) | 1.3 / 1.5 mph |
| Turning Radius | 23-5/8" |
| Operation Time (Full Charge) | 3–4 hrs continuous / 8 hrs intermittent |
| Max Incline | 7° |
| Weight | 349 lbs |
| Dimensions | 64" L x 40" W x 52" H |

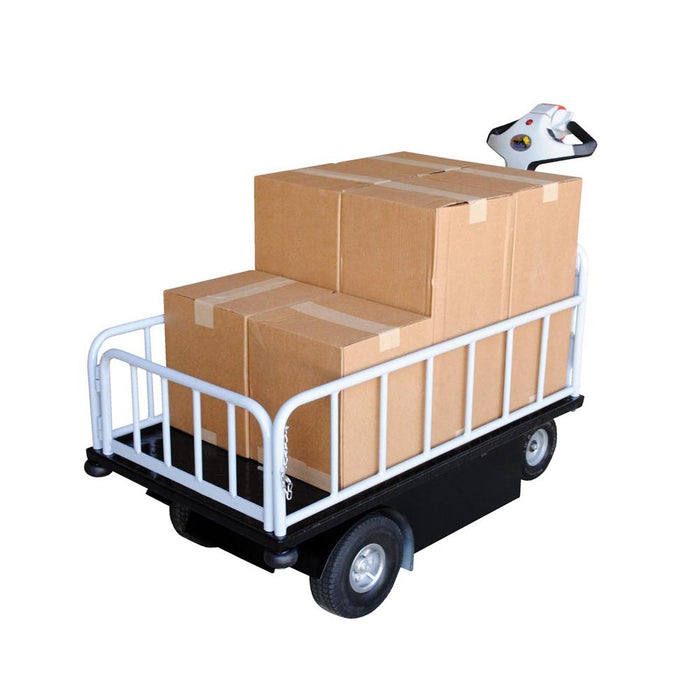

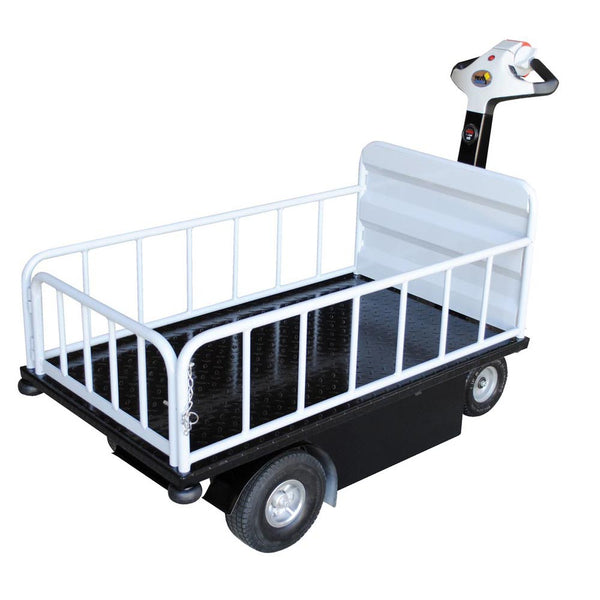

The Vestil NE-CART Traction-Drive Utility Cart is a powerful solution for transporting heavy loads with minimal effort. Engineered with a built-in traction-drive system, this electric utility cart is ideal for moving applications in hospitals, hotels, supermarkets, warehouses, and mail rooms.
Equipped with a 24V / 500W DC drive motor, the traction-drive cart provides smooth, controlled movement using solid foam tires for both drive and steering wheels. The handle-mounted variable throttle speed control, emergency stop, and horn ensure safety and precision when maneuvering.

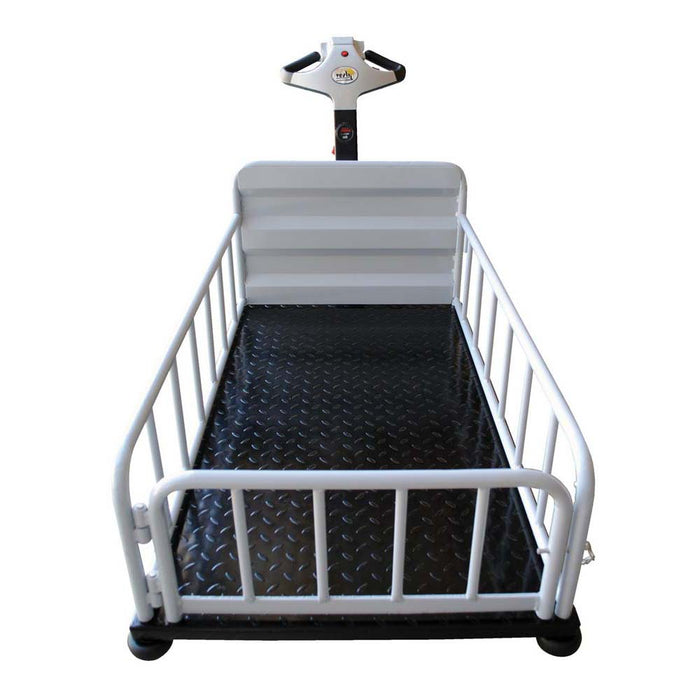

Each shelf features a non-slip tread plate surface, while the included on-board battery charger and battery level indicator offer convenience during daily operations. Whether you're using it as a moving dolly, push cart, or carrier, this utility truck handles it all.
