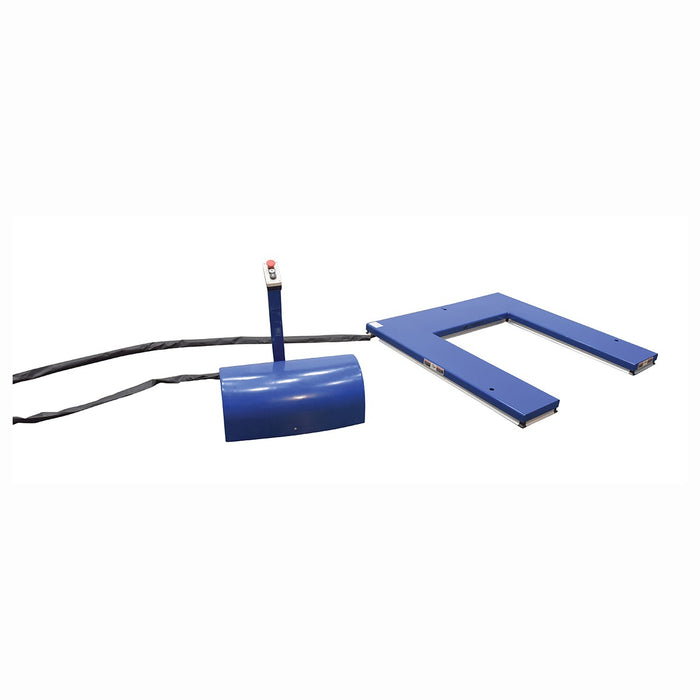

Vestil U Type Electric Lift Table Capacity 2000 lbs. EHU-2

SKU EHU-2
Save $1,587.22 Save $1,587.22
Original price $7,374.95
Original price $7,374.95 - Original price $7,374.95
Original price $7,374.95
Current price $5,787.73
$5,787.73 - $5,787.73
Current price $5,787.73
Product Description:

Features

  • Low Profile "U" Type Electric Lift Table allows pallet trucks to position loads without a pit

  • Handles open-bottom pallets for quick, ergonomic loading and unloading

  • Hydraulic scissor lift mechanism supports 2000–3000 lb capacity

  • Includes external power unit with pressure relief and flow control valves

  • Easy operation with 24V UP/DOWN control box and emergency stop

  • Safety-enhanced: toe guards, velocity fuses, and maintenance props

  • Ideal for industrial, warehouse, or material handling applications

Specifications

Specification Value
Weight 592 lbs
Dimensions (L × W × H) 64" × 64" × 17"
Capacity 2000 lbs, 3000 lbs
Raised Height 33.5 inches
Voltage / Phase 115V / Single Phase
Control Box Voltage 24V
Deck Inside Width 29.75 inches
Remote Power Unit (W × L × H) 14.75" × 26.75" × 9.5"

The Vestil EHU Series Low Profile "U" Lift Table is engineered for ergonomic material handling in industrial environments where lifting efficiency and safety are critical. This hydraulic lift table features a unique “U” shaped platform that enables direct loading via pallet trucks—ideal for open-bottom pallets. Designed for pallet or skid lifting applications, it streamlines loading/unloading without the need for a forklift.

Built with durable steel, this scissor lift table is powered by an external remote power unit equipped with a pressure relief valve to prevent overloading and a flow control valve for consistent lowering speeds. The 24V control box includes pedestal-mounted UP and DOWN push buttons, with an emergency stop button for enhanced safety.

Safety is a priority: toe guards, cylinder velocity fuses, safety maintenance props, and a protective motor cover are standard. This platform scissor lift is ideal for warehouses, shipping areas, and distribution centers requiring low-profile lifting tables for improved workflow.

Read more...

Authorized Retailer For Vestil

Lowest Prices Online

No Sales Tax

Speak With Expert Today (443) 338-9775

Save $1,587.22 Save $1,587.22
Original price $7,374.95
Original price $7,374.95 - Original price $7,374.95
Original price $7,374.95
Current price $5,787.73
$5,787.73 - $5,787.73
Current price $5,787.73

Authorized Retailer For Vestil

Lowest Prices Online

No Sales Tax

Speak With Expert Today (443) 338-9775

Product Description

Features

  • Low Profile "U" Type Electric Lift Table allows pallet trucks to position loads without a pit

  • Handles open-bottom pallets for quick, ergonomic loading and unloading

  • Hydraulic scissor lift mechanism supports 2000–3000 lb capacity

  • Includes external power unit with pressure relief and flow control valves

  • Easy operation with 24V UP/DOWN control box and emergency stop

  • Safety-enhanced: toe guards, velocity fuses, and maintenance props

  • Ideal for industrial, warehouse, or material handling applications

Specifications

Specification Value
Weight 592 lbs
Dimensions (L × W × H) 64" × 64" × 17"
Capacity 2000 lbs, 3000 lbs
Raised Height 33.5 inches
Voltage / Phase 115V / Single Phase
Control Box Voltage 24V
Deck Inside Width 29.75 inches
Remote Power Unit (W × L × H) 14.75" × 26.75" × 9.5"

The Vestil EHU Series Low Profile "U" Lift Table is engineered for ergonomic material handling in industrial environments where lifting efficiency and safety are critical. This hydraulic lift table features a unique “U” shaped platform that enables direct loading via pallet trucks—ideal for open-bottom pallets. Designed for pallet or skid lifting applications, it streamlines loading/unloading without the need for a forklift.

Built with durable steel, this scissor lift table is powered by an external remote power unit equipped with a pressure relief valve to prevent overloading and a flow control valve for consistent lowering speeds. The 24V control box includes pedestal-mounted UP and DOWN push buttons, with an emergency stop button for enhanced safety.

Safety is a priority: toe guards, cylinder velocity fuses, safety maintenance props, and a protective motor cover are standard. This platform scissor lift is ideal for warehouses, shipping areas, and distribution centers requiring low-profile lifting tables for improved workflow.
