Vestil U Type Electric Lift Table Capacity 3000 lbs. EHU-3
Features
-
Low Profile “U” Lift Table fits pallet jacks and open-bottom pallets
-
Electric scissor lift table with 2,000–3,000 lbs. capacity
-
Built-in pressure relief and flow control valves
-
Remote hydraulic power unit with dust-protected motor
-
Integrated safety features for compliance and protection
-
Compatible with Vestil EHU and EHU-3 series models
Specifications
| Feature | Detail |
|---|---|
| Capacity | 2000 lbs, 3000 lbs |
| Weight | 777 lbs |
| Dimensions | 64 × 64 × 16 in |
| Raised Height | 33.5 in |
| Deck Inside Width | 29.75 in |
| Voltage / Phase | 115V / Single Phase |
| Control Box Voltage | 24V |
| Remote Power Unit (W x L x H) | 14.75 in × 26.75 in × 9.5 in |

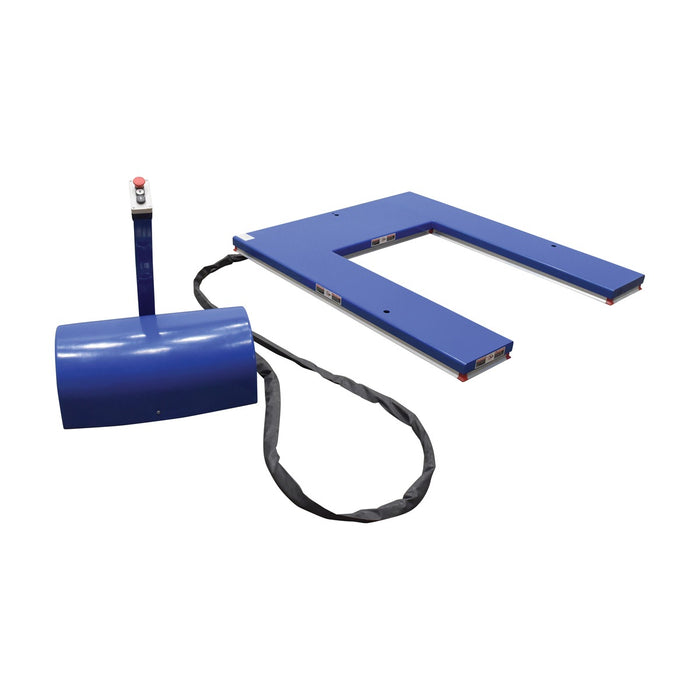

The Low Profile “U” Lift Table is engineered for seamless integration with pallet trucks, allowing operators to easily position open-bottom pallets or skids onto the platform without a forklift. Designed for ergonomic lifting in demanding environments like manufacturing or warehousing, this scissor lift table features a “U”-shaped deck crafted from high-strength steel for long-term durability.
This electric hydraulic lift table includes a remote power unit with UP and DOWN push-button controls for smooth and controlled lifting. Equipped with a pressure relief valve to prevent overloading and a flow control valve to ensure safe lowering speeds, the unit delivers both precision and safety.
With its 115V single-phase power and 24V control box, this Vestil-compatible platform scissor lift is ideal for ergonomic handling of heavy loads in limited spaces.
